Mean Well 35W 24V Single Output Switching Power Supply APV-35-24

SKU: APV-35W-24V

$18.43

The Mean Well APV-35-24 is a 35W Class 2 LED driver with a 24V DC output, perfect for LED strips, signage, and decorative lighting. It features a compact design, universal AC input (90-264VAC), high efficiency, and IP42 protection. With built-in safeguards against short-circuit, overload, and overvoltage, it ensures reliable and safe operation. Certified to international safety standards, this driver is a safe and economical choice for both professional and DIY lighting projects, delivering durable performance and energy efficiency in a wide range of indoor applications.

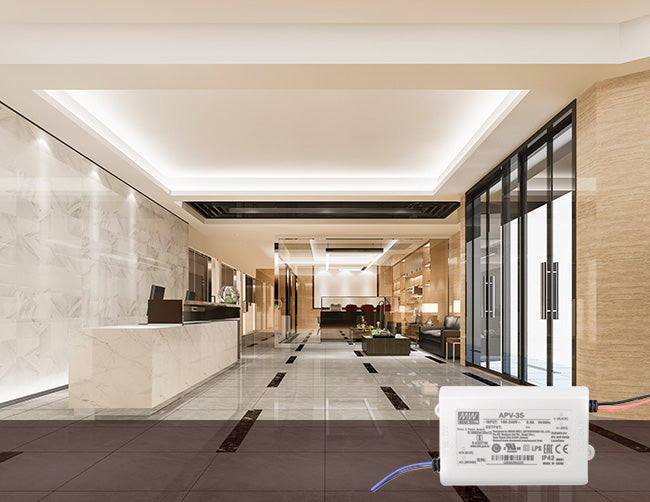

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video:

  • Model No: APV-35W-24V
  • Input Voltage: 90-132VAC
  • Output Voltage: 24VDC, Constant Voltage
  • Wattage: 35W
  • Rated Current: 1.5A
  • Class: Class 2

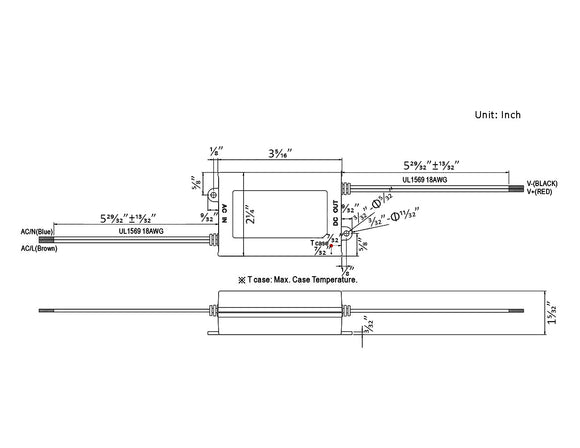

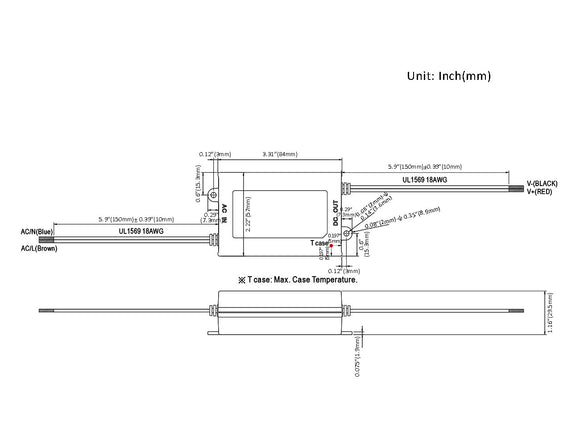

  • Dimension: L 3.3", W 2.2", H 1.2"
  • Work Environment / IP Rating : IP42
  • Installation Options: Surface Mounted
  • Working Temperature: -22 ~ +158℉
  • Certification: RU
  • Warranty: 2 Years
  • Protection Method: Short circuit/Over load/Over voltage

Mean well 35W Single Output Switching Power Supply Specification

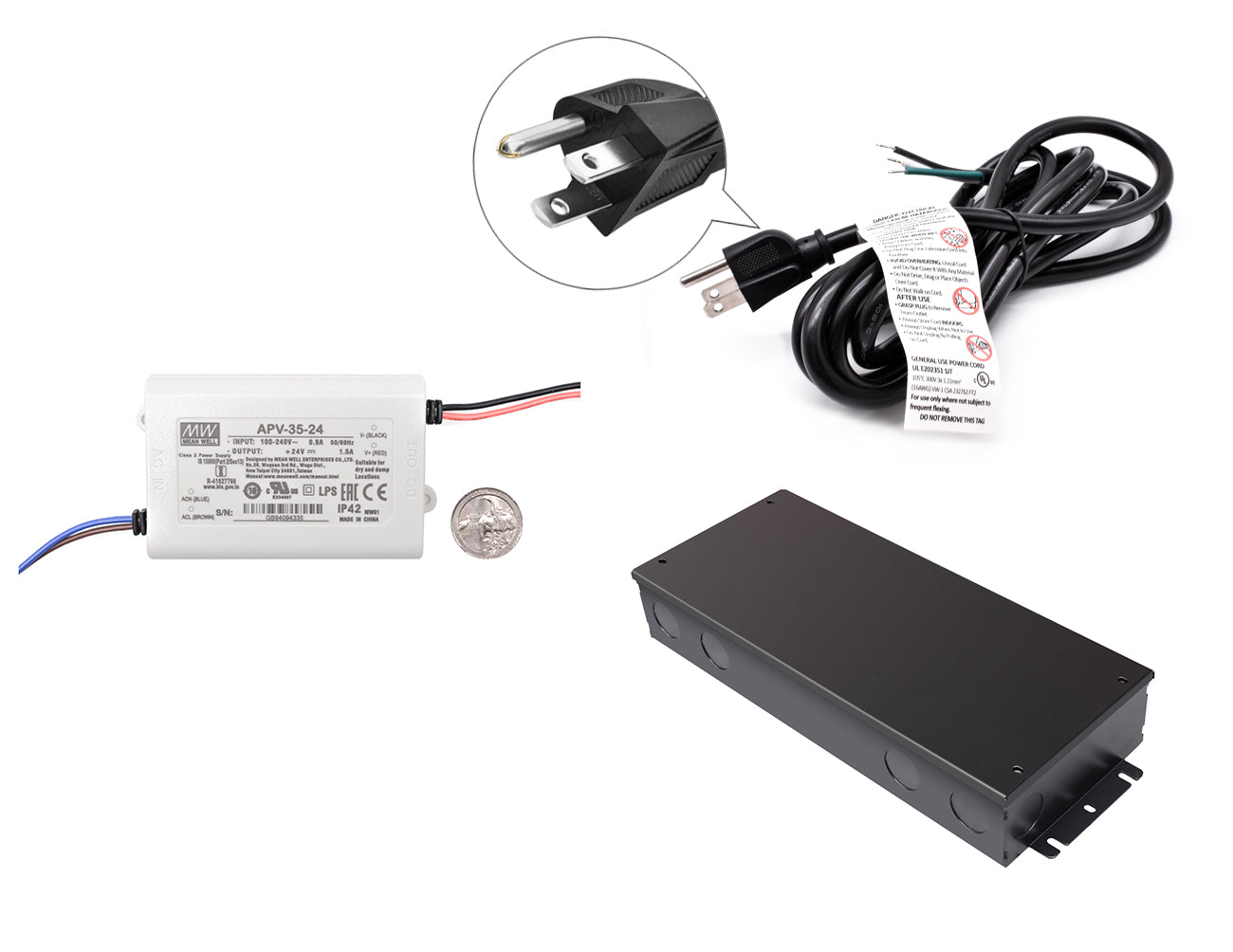

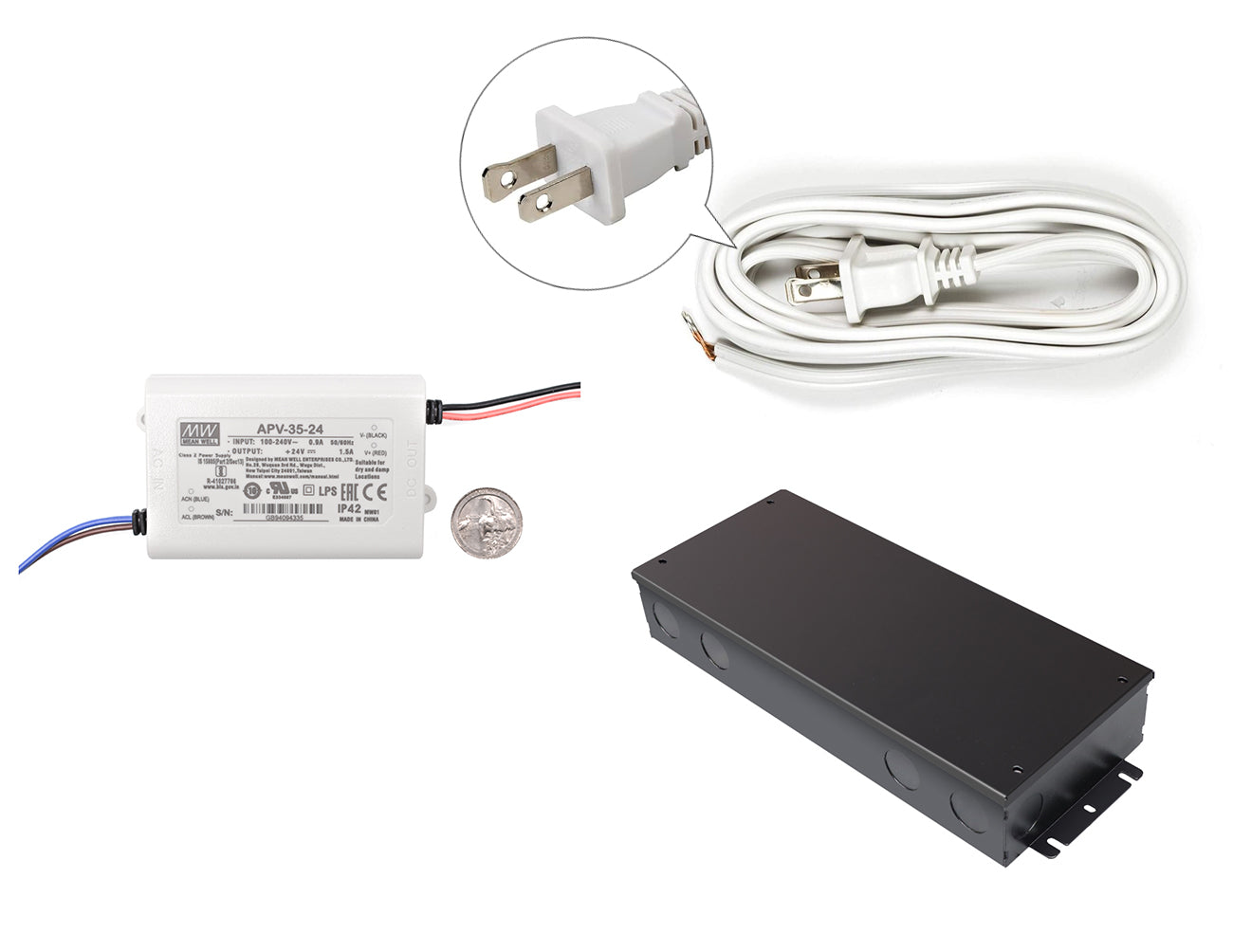

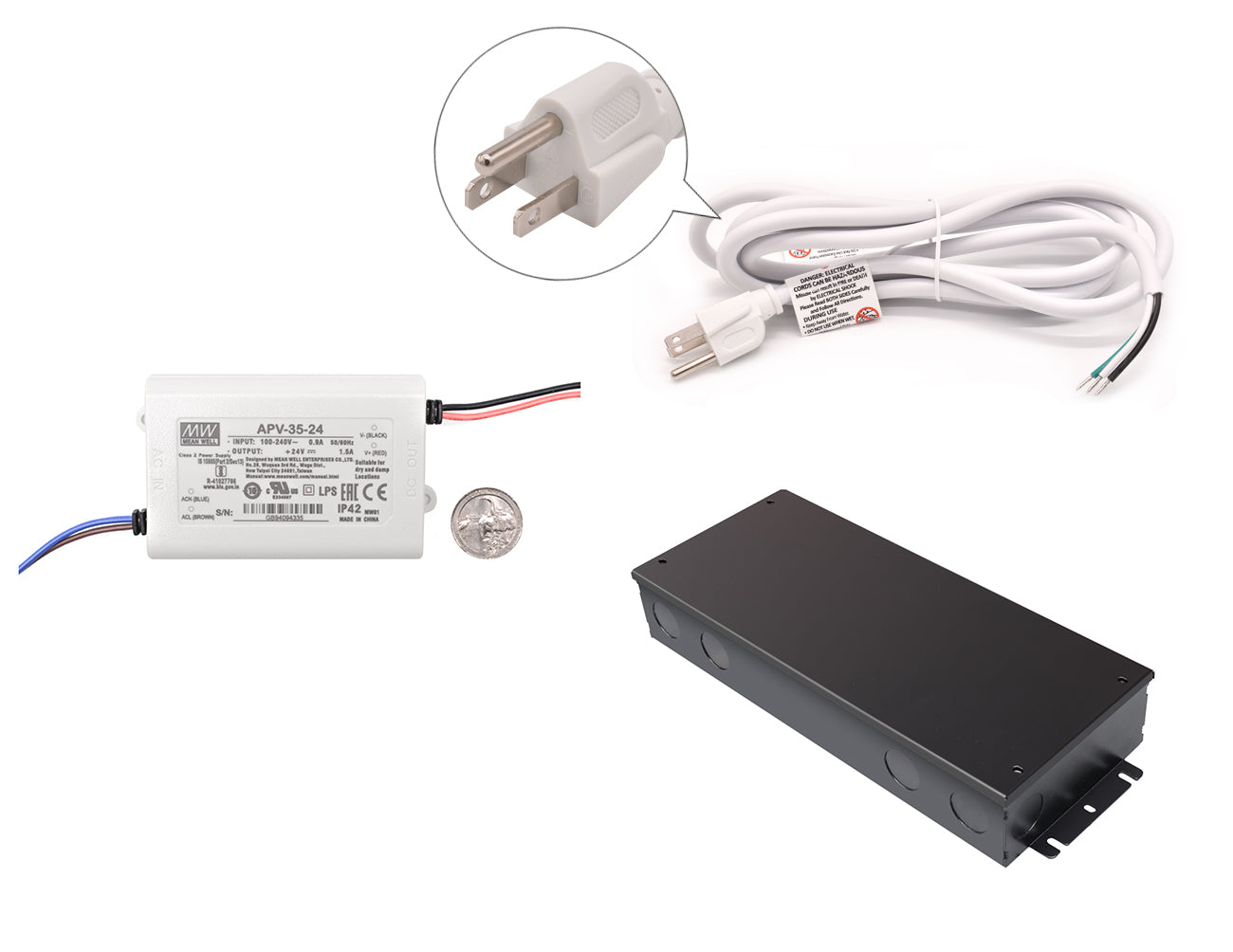

Separate accessories are available

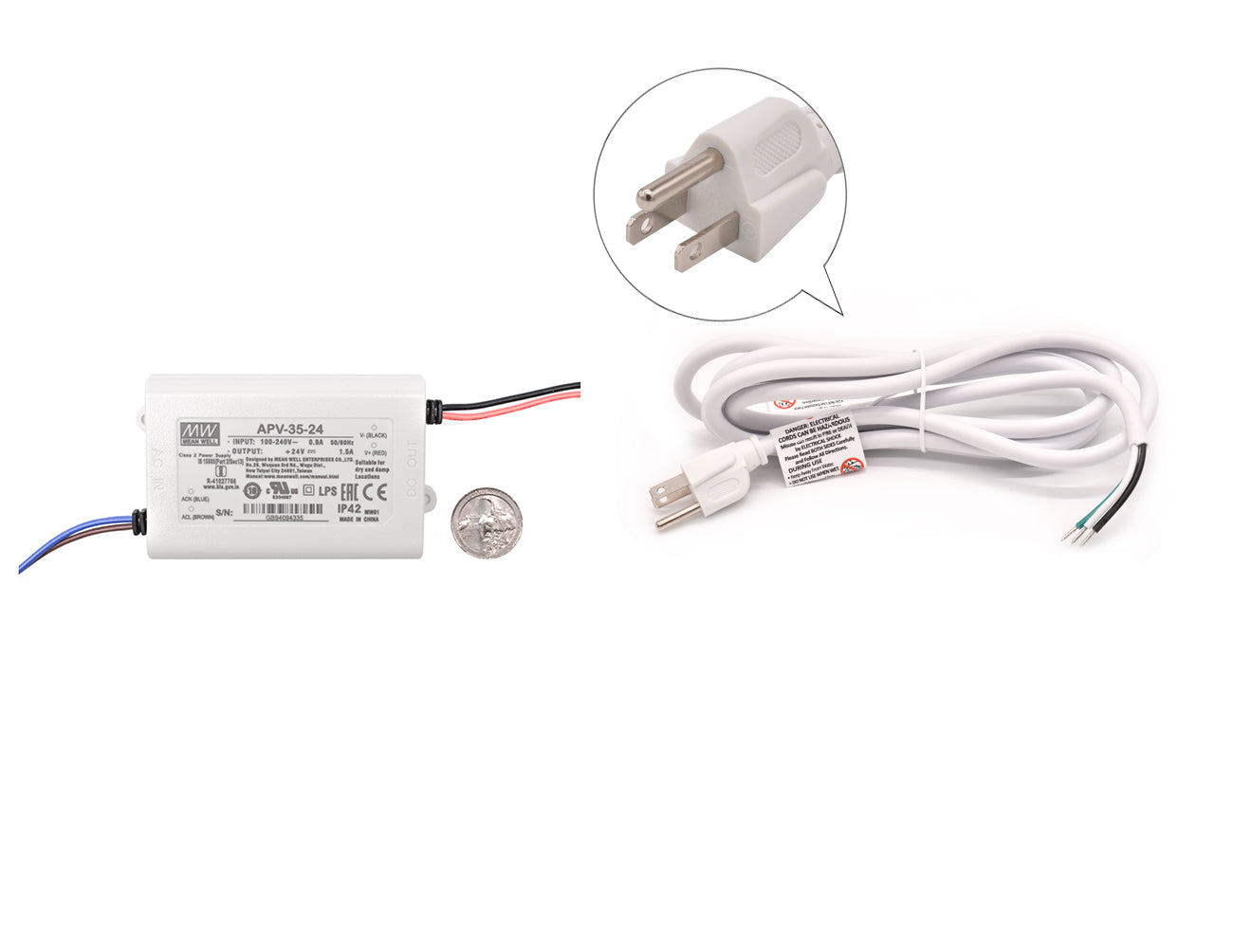

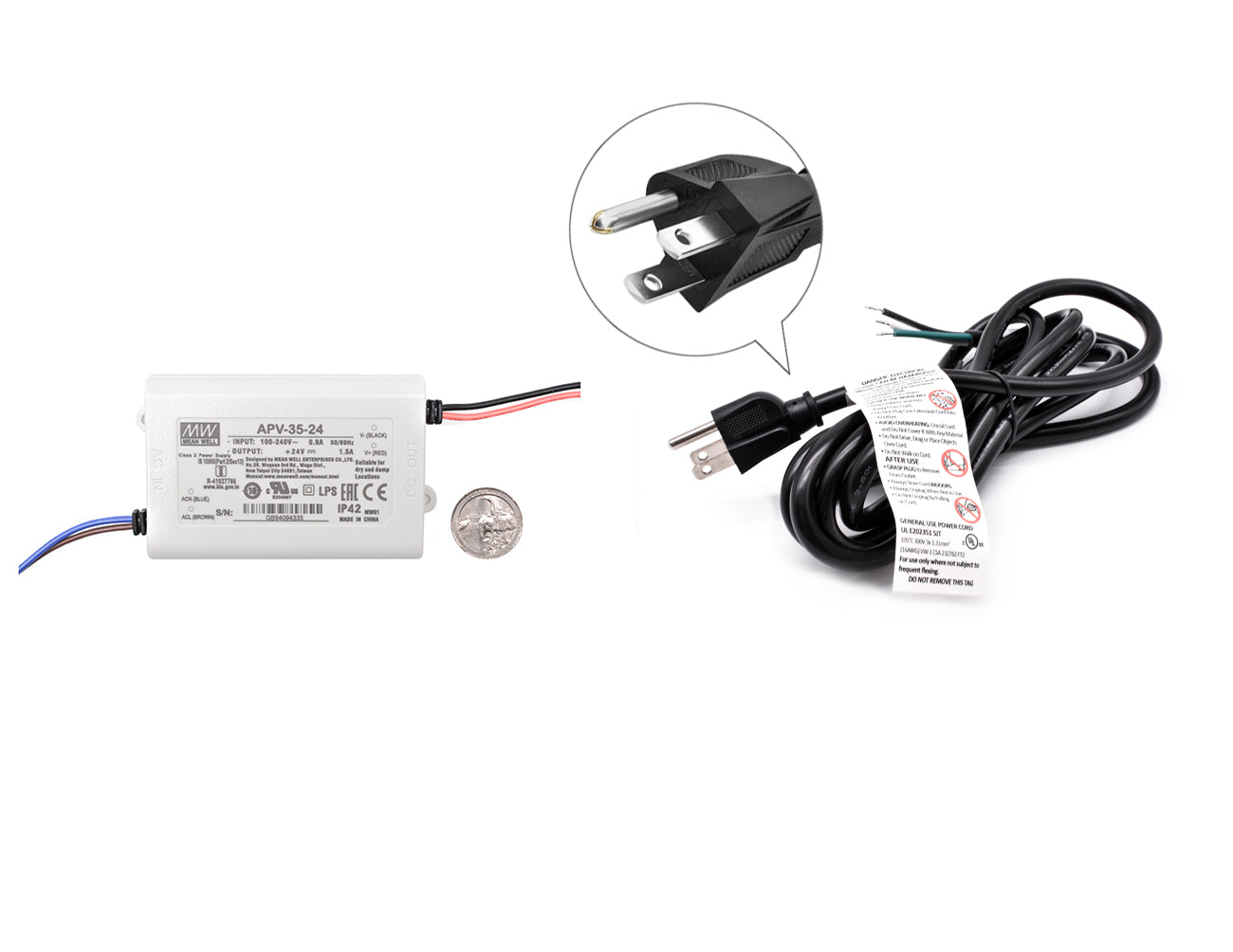

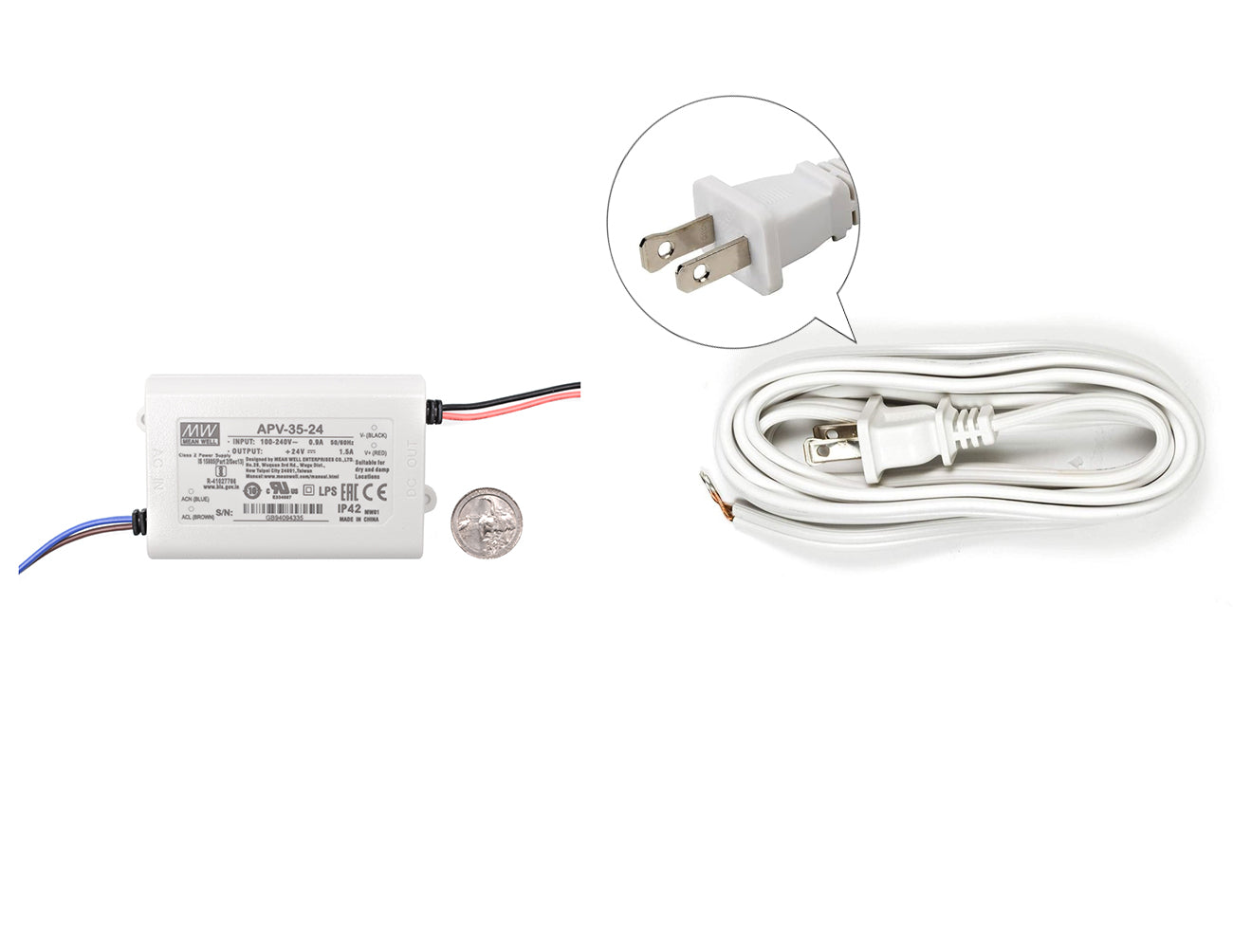

Power Cable

Junction Box

T Grid Mount Bracket
