Infrared PIR Motion Sensor Switch

SKU: K1021

$28.32

Description Specification Accessories

Motion Sensor Switch - K1021

• The Motion Sensor Switch is used in an environment where the light is needed to be turned on/off automatically with motion detecting. It is widely used in bathrooms, staircases, hallway, or any place needs motion light.
• This product only can be used for low-voltage LED light circuits.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel
  • Model No: K1021
  • Operation Voltage: 12V or 24V
  • Maximum load/Amp: Max 1A, 12V-12W, 24V-24W

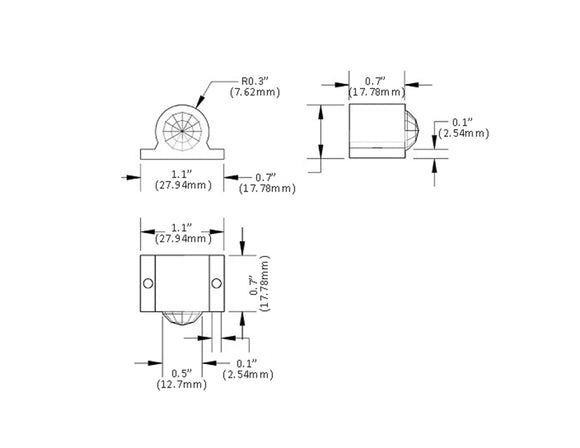

  • Dimension: L 1.1", W 1.1", D 0.7"
  • Control method: Infrared photoelectric
  • Work Environment/IP Rating: Dry location, IP20
  • Finish options: White
  • Installation options: Surface Mounted
  • Certification: CE
  • Warranty: 2 Years

Infrared PIR Motion Sensor Specification

LED Strip Light

Accessories are available and sold separately

DC Female to Dupont Female Adapter

DC Male to Dupont Male Adapter

Dupont DC Splitter 1 to 6

Dupont Extension Wire

Dupont Male Wire
