ZIP RGB Wall Mount Rotary Controller 1 Zone


Login to view price

Designed for use with the RGBW RF Receiver 8A 4CH, this wireless LED controller fits in standard wall switch boxes and provides on/off control as well as variable levels of dimmability. Double-clicking the knob switches between dimmer and RGB control. Adjust color and brightness for one zone. Press and hold knob to alternate between 3 different shades of white (warm, neutral, cold). No flickering, no signal wiring, no input wiring. The dimmer knob transmits an RF signal to the wireless receiver from up to 65 feet away in open air. The wireless dimmer includes a required 3V CR2032 battery installed.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video: How to pair RGB 1Z Dimmer & receiver

  • Model No: ZIP-RGB-WM-R-1Z-W
  • Operation Voltage: Battery CR2025

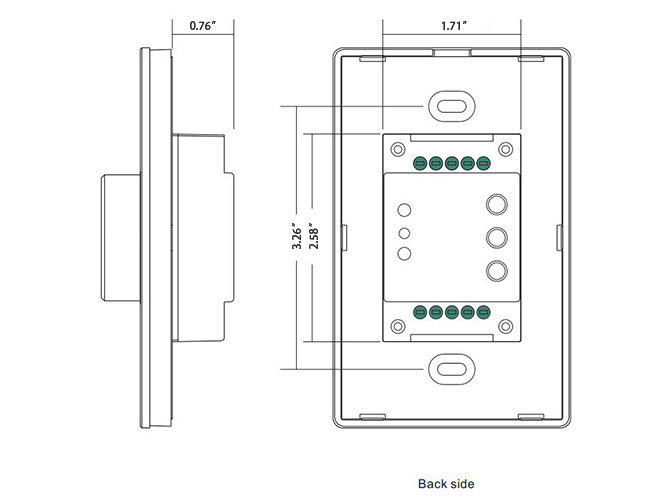

  • Dimension: L 4.7", W 2.9", D 1.6"
  • Dimming method: PWM
  • Control method: RF Control
  • Work Environment/IP Rating: Dry location, IP20
  • Finish options: Glass interface(Black/White)
  • Installation options: Wall Mounted
  • Certification: TUV, CE, FC, ROHS, UL
  • Warranty: 5 Years

ZIP RGB Wall Mount Rotary Controller 1 Zone Manual

Compatible receiver: ZIP RGBW RF Receiver

Compatible amplifier: SIM/ZIP RGBW Amplifier
                                   BLK RGB Amplifier
