Product Details
GL-085 is a recessed extrusion made of anodized extruded aluminum with a milky diffuser, and is designed to produce a downward homogeneous wall washing effect by integrating an LED strip light into a wall. Each piece is 94” long and has a silver color finish, and the channels can be cut to any length and easily connected to each other using straight extension connectors, L-shaped flat corner connectors, or L-shaped vertical corner connectors (sold separately).

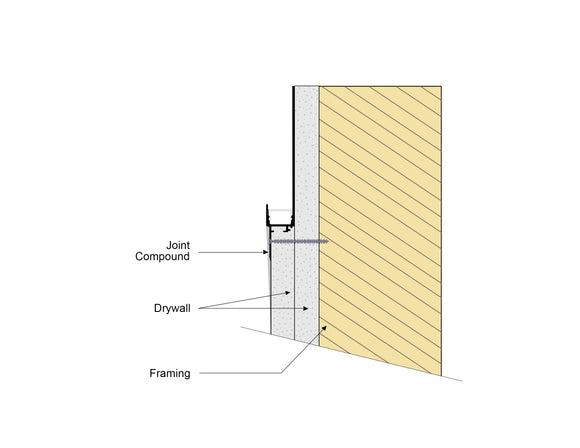

The GL-085 aluminum extrusion has an internal width of 0.56", compatible to hose one line of 10mm LED strip lights. Together with an LED light source inside, the aluminum extrusion can be well recessed to drywall walls to present a neat and stylish wall washing effect.
Want to try our product sample >>Click here!
Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.

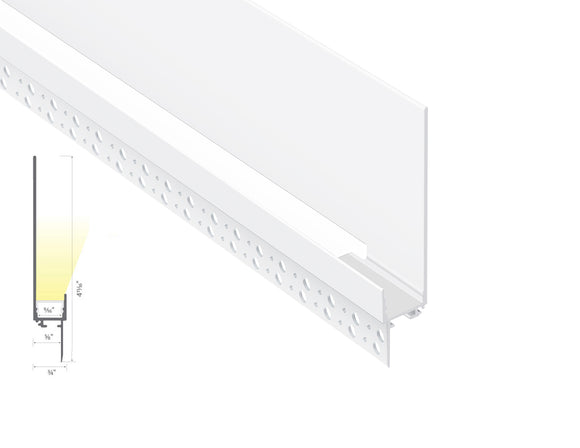

Specifications
Dimension |
L 94", W 3/4", H 4 11/16" |
Internal width |
9/16" |
Material |
Anodized Aluminum |
Finish |
White aluminum and milky diffuser |
Diffuser |
Milky |
Installation |
Recessed Mount |
Application |
Indoor |
Length |
94 in |
Documents
Aluminum Channel Specification - WALL WASHER GL 085
View AccessoriesHow Aluminum LED Lighting Channels Add Functionality and Long-Term Value
Whether for home upgrades or large-scale commercial installs, aluminum LED channels are a smart accessory that elevates both performance and protection. Below are six reasons why they’re a worthwhile investment:
·Clean Aesthetic Integration
Aluminum housings ensure a tidy, professional appearance by hiding wires and supporting clean linear lighting designs.
·Light Optimization
With high-quality diffusers, these channels enhance visual comfort by transforming sharp LEDs into smooth, glare-free illumination.
·Heat Sink Functionality
The aluminum structure helps regulate temperature, preserving LED brightness and reducing failure rates.
·Robust Protection
Guarding against knocks, dust, and moisture, these channels extend the durability of your LED installations.
·Adaptable for Any Project
Aluminum profiles come in various shapes, finishes, and sizes. They are easy to modify and install in nearly any lighting setup.
·Lower Lifecycle Cost
Fewer replacements and reduced downtime make these channels a cost-efficient lighting solution with long-term savings.
·Mud-In Style
These channels are mud-in capable, allowing seamless blending with plasterboard for a hidden, professional lighting aesthetic.
