SLIM RECESS - YD 1201 Black Aluminum Channel + Black Diffuser - 94"

Product Details

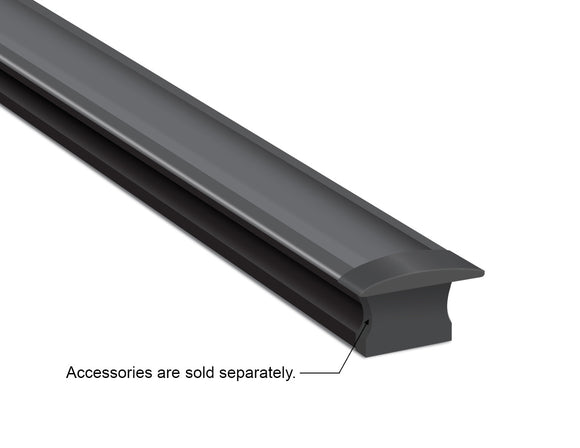

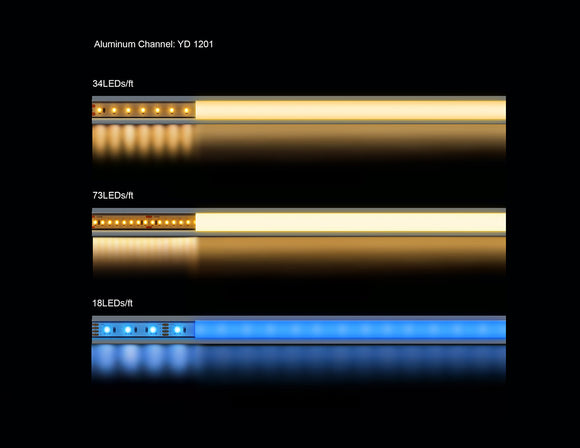

YD 1201 Black Aluminum Channel + Black Diffuser is a slim recessed extrusion made of anodized extruded aluminum with a diffuser and has a dimension of 0.90” in width and 0.59” in height. Internal width of the aluminum channel is 0.47", compatible to host a 10mm LED strip light. The increased depth of the profile further aids in achieving a uniformly dispersed light, free from any noticeable hotspots.

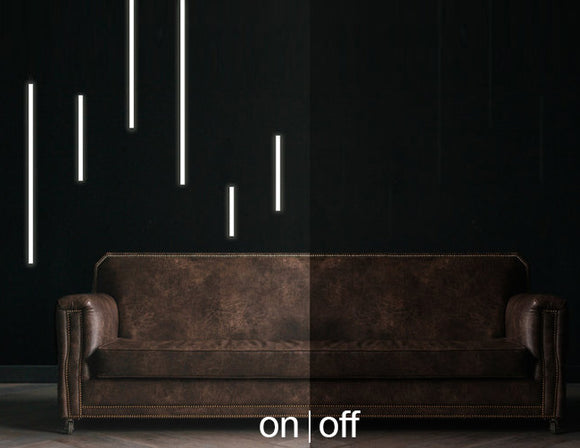

Each piece is 94” long and have different finish options, including a black color channel with a milky diffuser, and a black color channel with a black diffuser. YD-1201 black aluminum channel with a black diffuser appears completely black when the LED light source inside is off, but can light up effectively when the LED light is turned on.

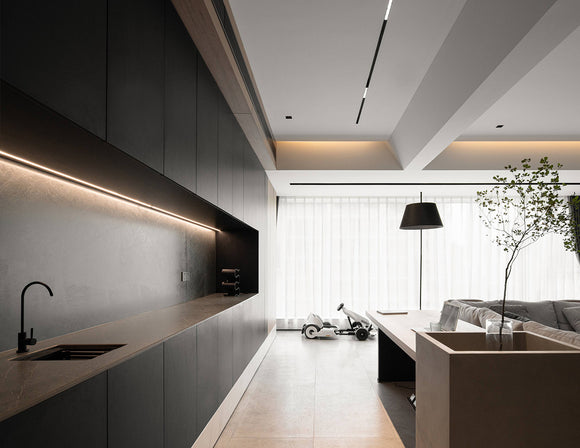

The recessed design allows for a sleek and seamless integration of LED strip lights into surfaces, providing a clean and polished appearance. The channels hide the light source and wiring, resulting in a neater and more professional-looking installation.

Want to try our product sample >>Click here!

Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.

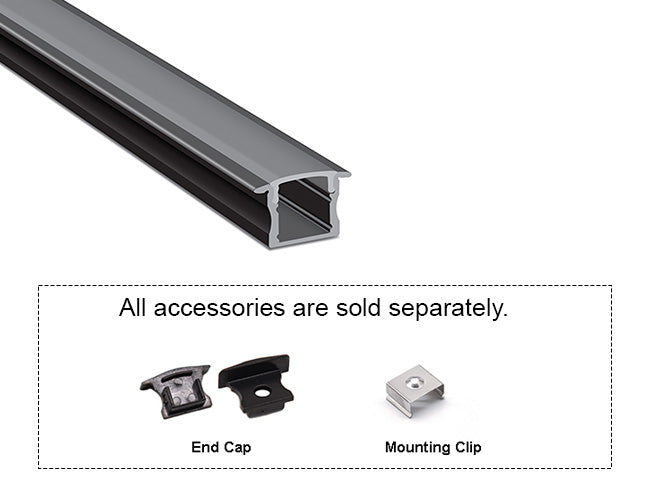

This product includes:
· YD 1201 Black Aluminum Channel – 94"*1
· YD 1201 Black Diffuser – 94"*1

Documents

Aluminum Channel Specification - SLIM RECESS YD 1201

Why Use Aluminum LED Channels?

Searching for the best way to install LED strip lights? Aluminum LED channels are the go-to solution for DIYers and professionals:

· Premium Look
Get a clean, flush finish in residential or commercial spaces.

· Anti-Glare Diffusion
Use frosted covers for smooth light output.

· Better Heat Sink
Prevents LEDs from overheating.

· Protective Housing
Keeps LEDs safe from dust, liquids, and damage.

· Custom Fit
Easy to cut, drill, and mount on any surface.

· Saves Money
Fewer LED replacements = lower long-term costs.
