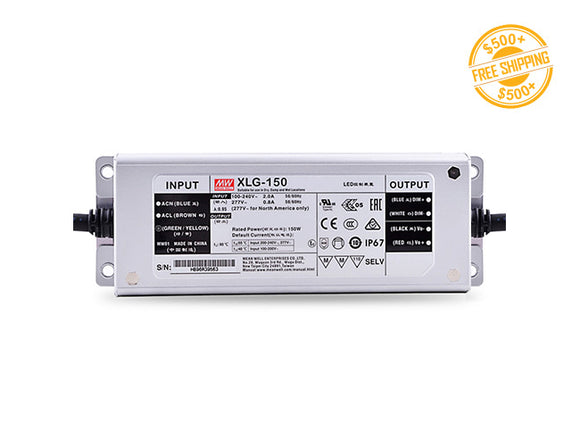

LED Driver XLG-150W-24V

SKU: XLG-150W-24V

Login to view price

The XLG AC/DC LED transformer series is constant voltage LED driver with an universal input voltage 90-305VAC and a high-power factor. They are specifically designed for LED strips, LED signs, billboards and landscape lights with a low standby power, high efficiency, compact housing and good thermal management. Those factors will greatly enhance the reliability and lifespan of the transformer. Comprehensive protections, including over voltage protection, short circuit protection and over temperature protection, make the LED transformer versatile to be used in various environments.

Note:
All IP67-rated products for wet locations only, cannot be used in water or in places where water might accumulate.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video:

  • Model No: XLG-150W-24V
  • Input Voltage: 100-305VAC
  • Output Voltage: 24VDC, Constant Voltage
  • Wattage: 150W
  • Rated Current: 6.25A

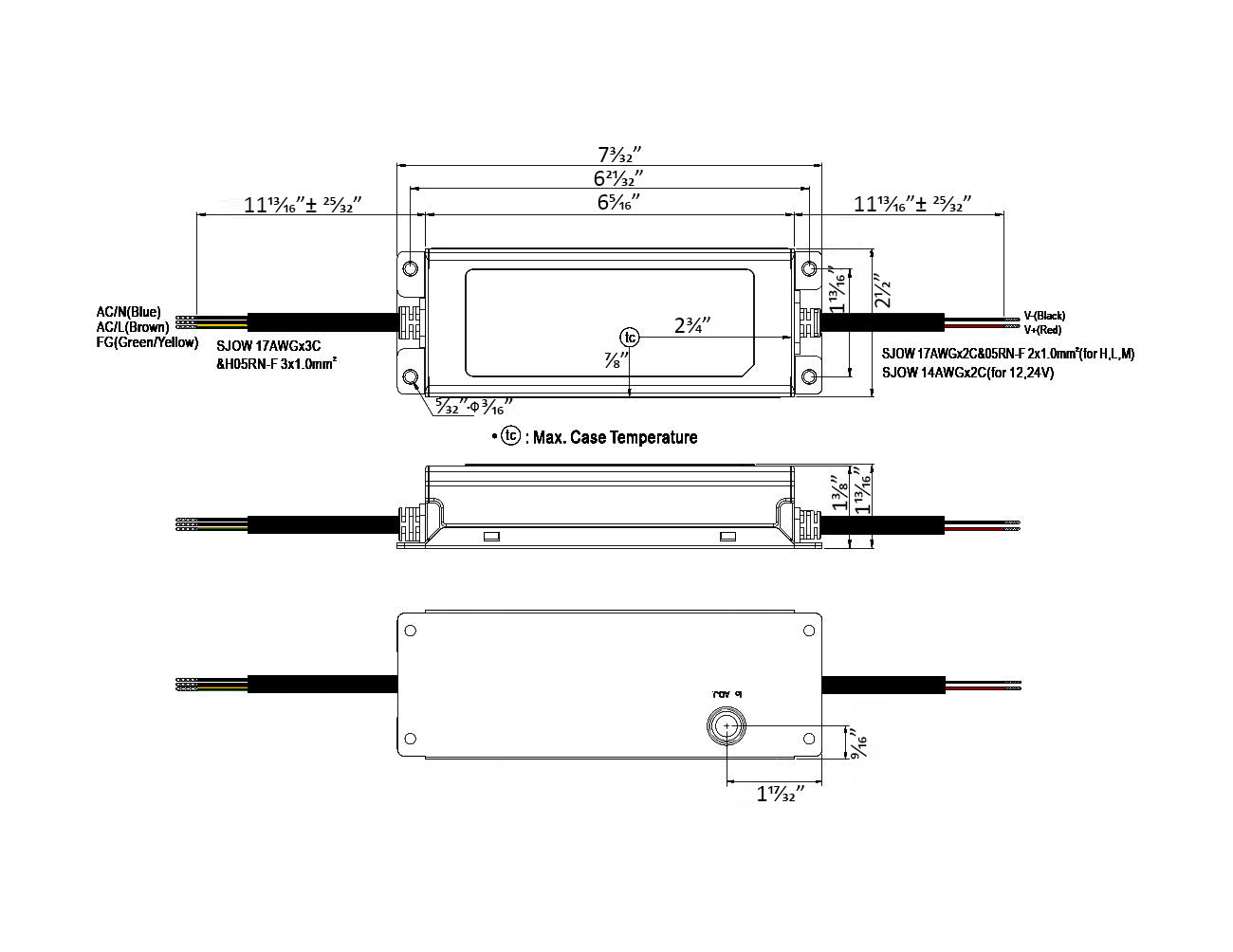

  • Dimension: L 7.09", W 2.48", H 1.40"
  • Work Environment / IP Rating : IP67
  • Installation Options: Surface Mounted
  • Certification: RU
  • Warranty: 5 Years
  • Protection Method: Short circuit/OCP/OVP/OTP

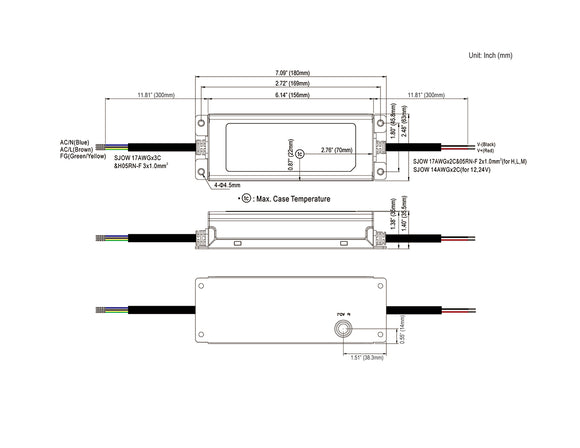

LED Transformer XLG-150W-24V Specification

Separate accessories are available

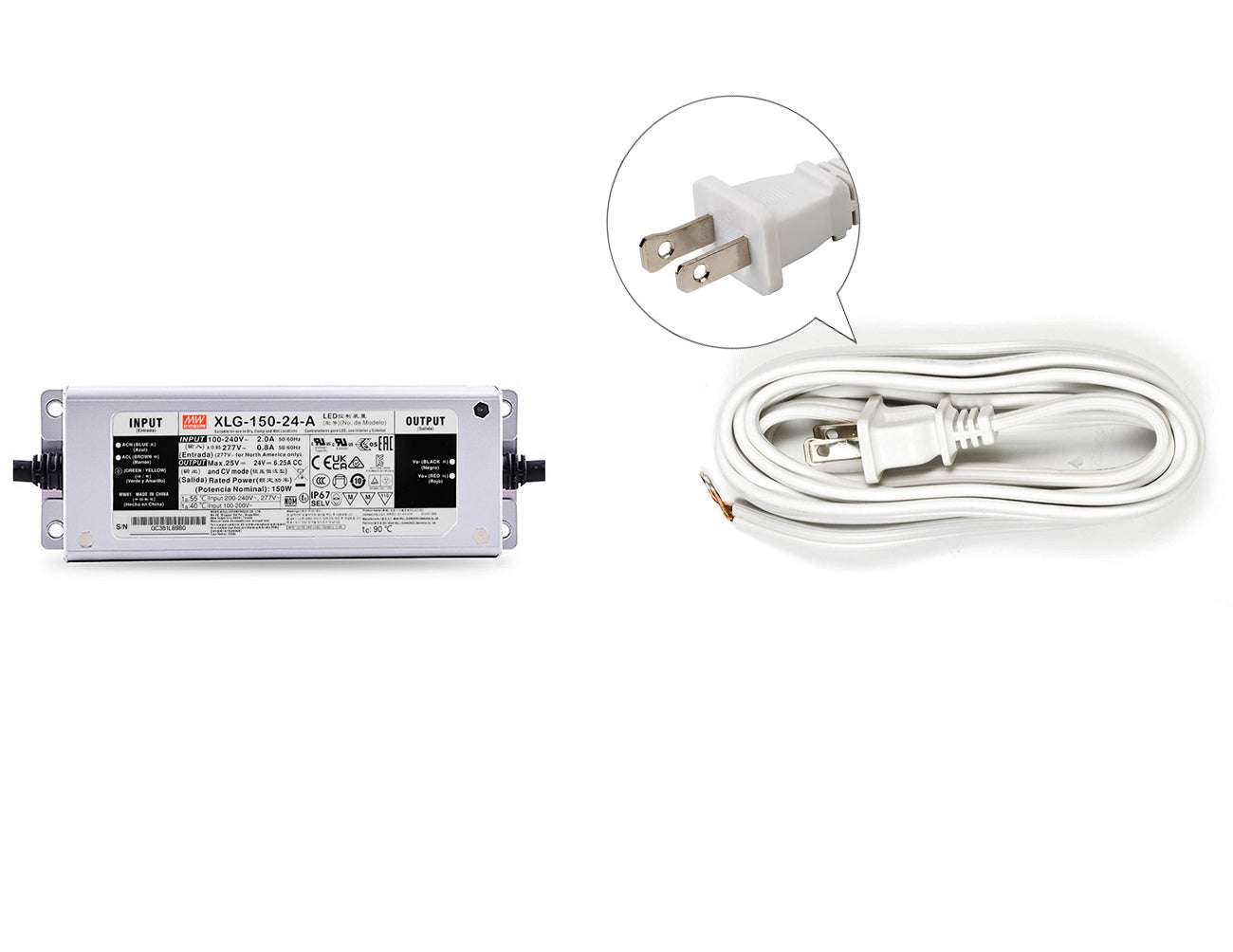

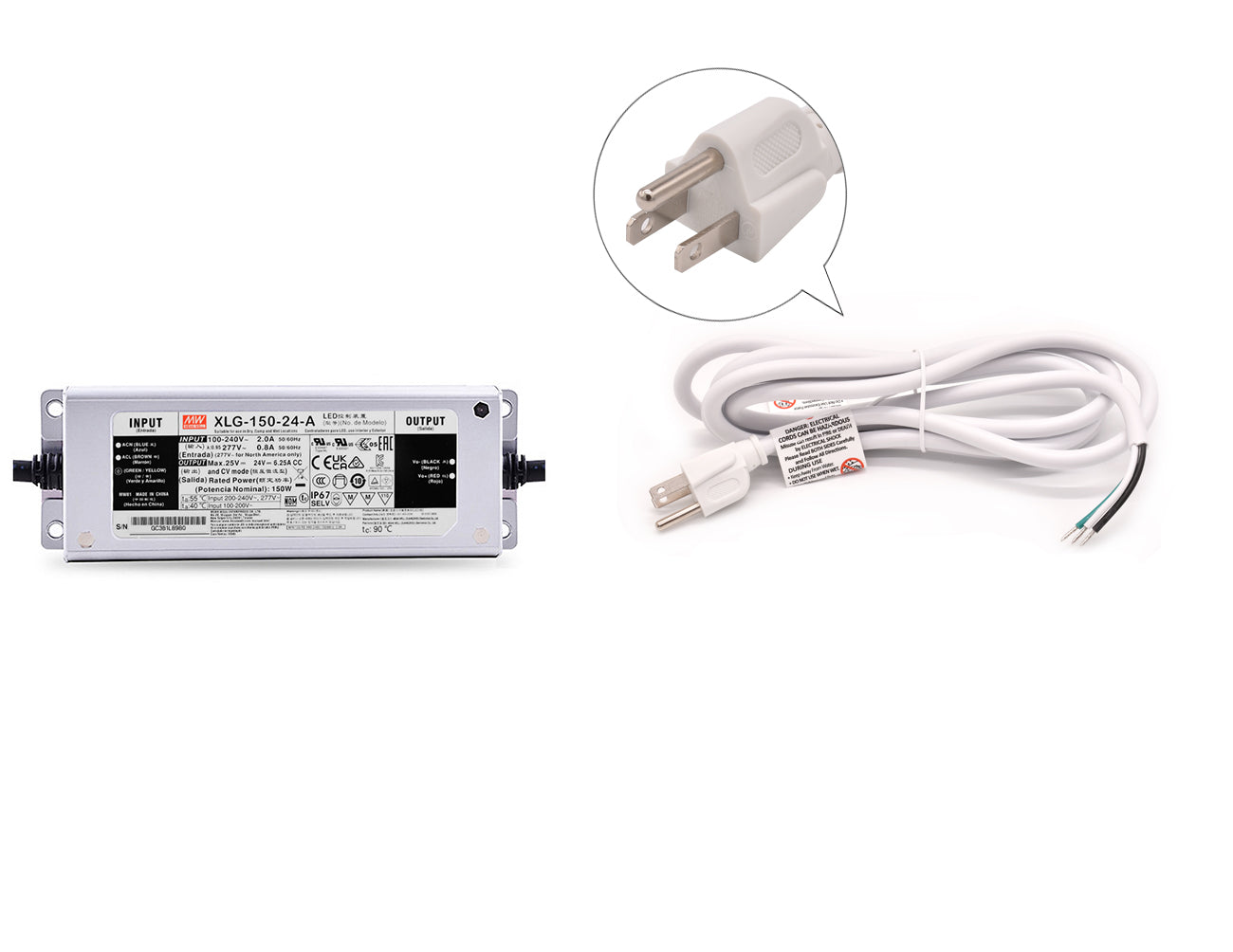

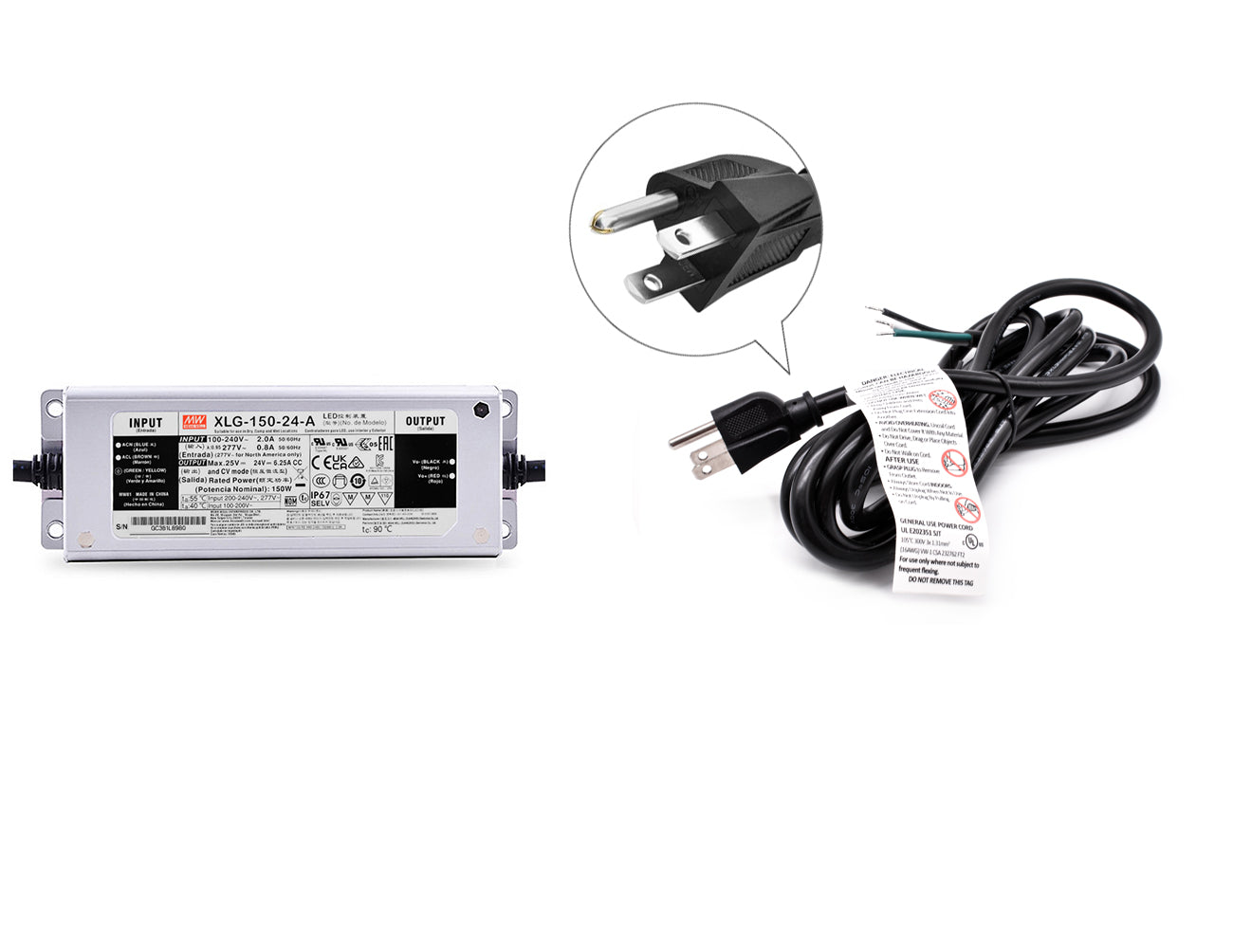

Power Cable

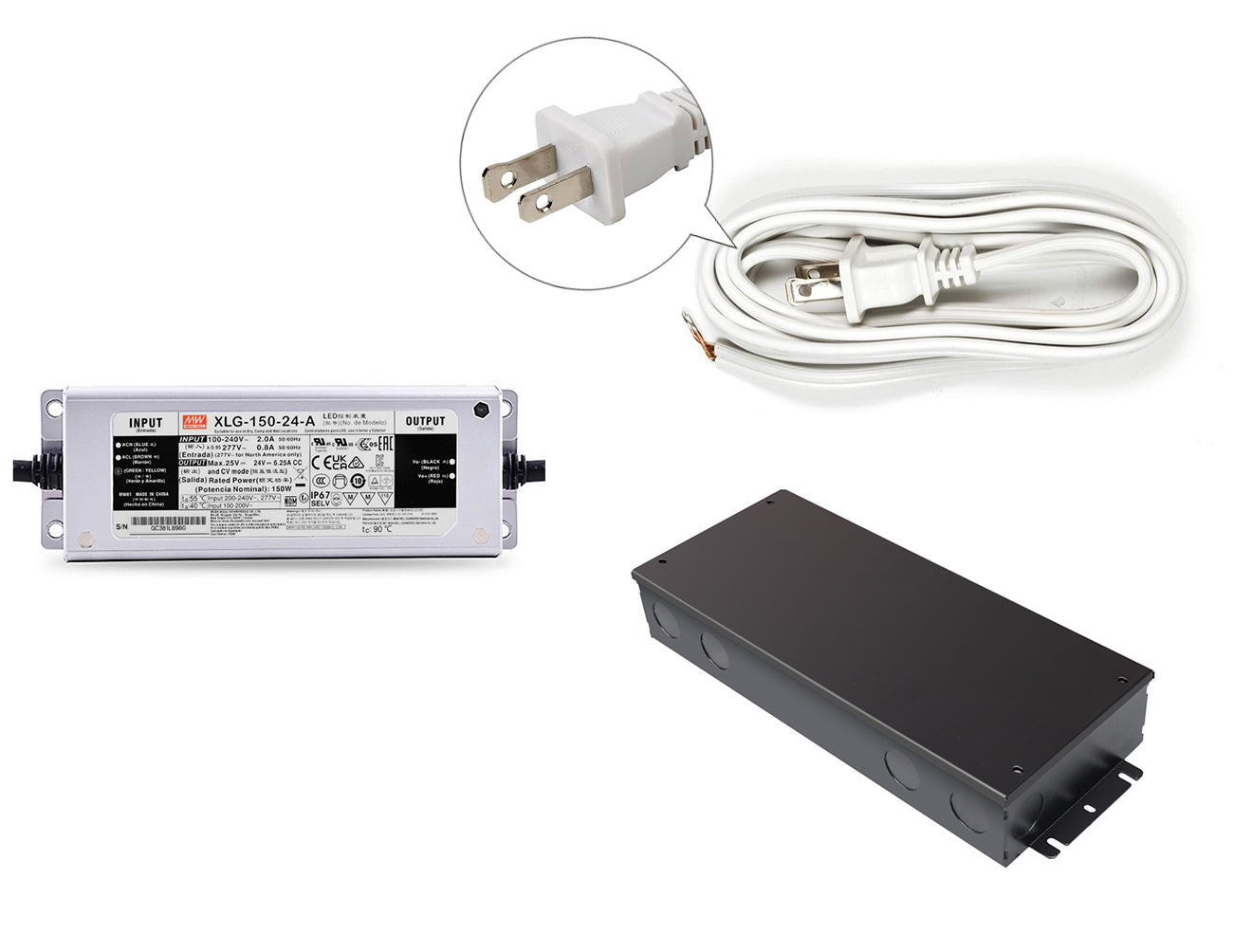

Junction Box

T Grid Mount Bracket
