LED Dimmable Driver P-50W-24V

SKU: P-50W-24V

Login to view price

P Series LED Dimmable Driver provide a smooth, stable, efficient, and flicker-free dimming capability for LED light fixtures. They are compatible with Forward phase, Magnetic low voltage, Triac Dimmer, and are perfect to power low voltage LED lights operated at 24VAC.

Features:
• Output constant voltage.
• Universal AC input: 100-130VAC
• Protection: short circuit/over loading/over temperature.
• Full protection aluminum housing.
• Easy installation.
• Strong compatibility, flicker-free dimming.
• Compatible with Forward phase, Magnetic low voltage, Triac Dimmer
• Suitable for dry or damp location use, IP20.
• Cooling by free air convection.
• 3 years limited warranty.
• ETL listed.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video: Dimmable Constant Voltage Transformers

Instruction Video: How to choose your correct transformer

  • Model No: P-50W-24V
  • Input Voltage: 100-130VAC
  • Output Voltage: 24VDC, Constant Voltage
  • Wattage: 50W
  • Rated Current: 2.08A
  • Power Factor: Up to 0.65
  • Class: Class 2
  • Dimension: L 7 1/32", W 2 13/32", H 15/16"
  • Dimming Method: Compatible with Forward phase, Magnetic low voltage, Triac Dimmers
  • Work Environment / IP Rating: dry location use, IP20
  • Installation Options: Surface Mounted
  • Working Temperature: -40~+140℉"
  • Certification: ETL, cETL listed, FCC
  • Warranty: 3 Years
  • Protection Method: Short circuit/Over loading/Over current/ Over temperature

LED Dimmable Driver P-50W-24V Specification
LED Transformer P Series Compatible Dimmer List

Separate accessories are available

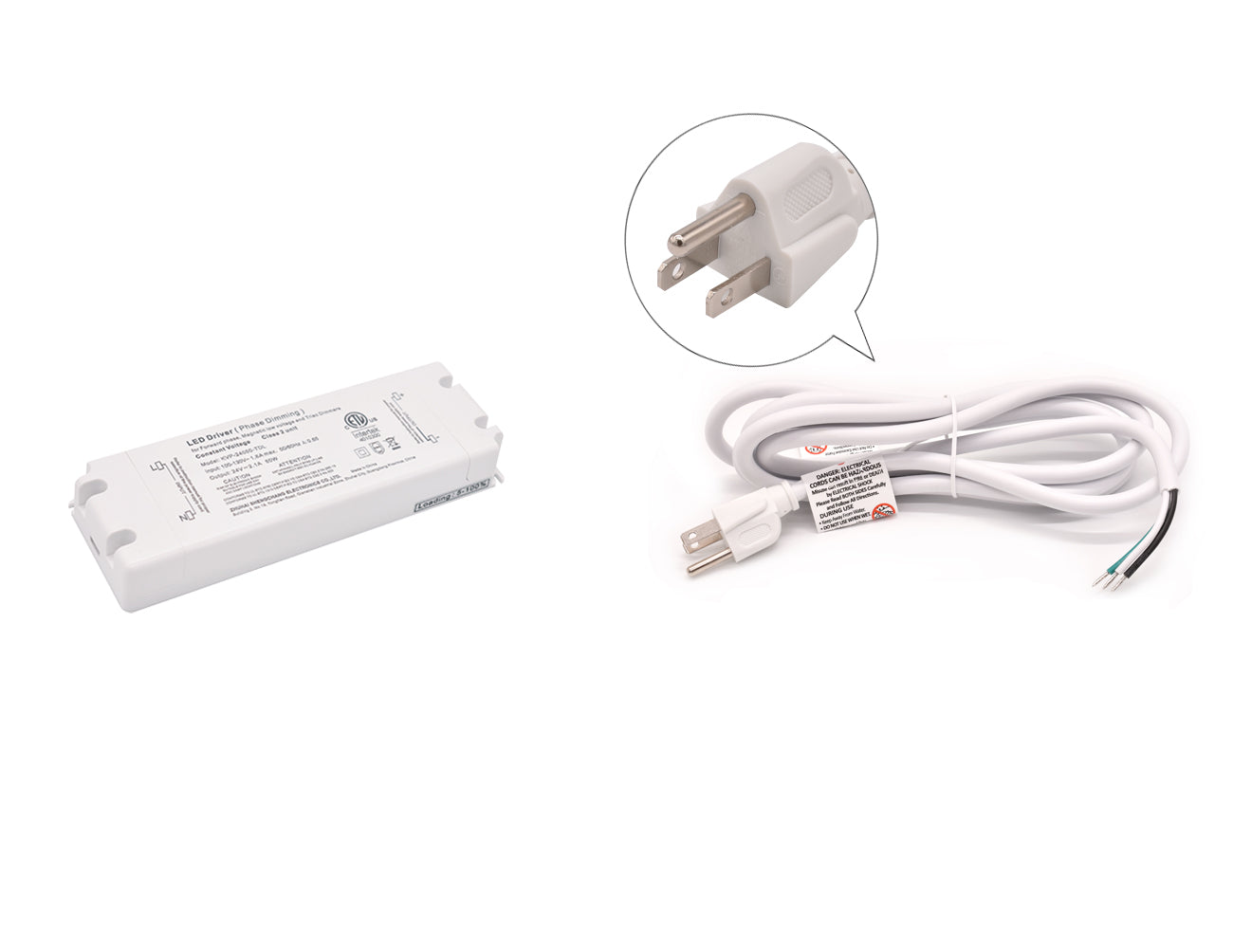

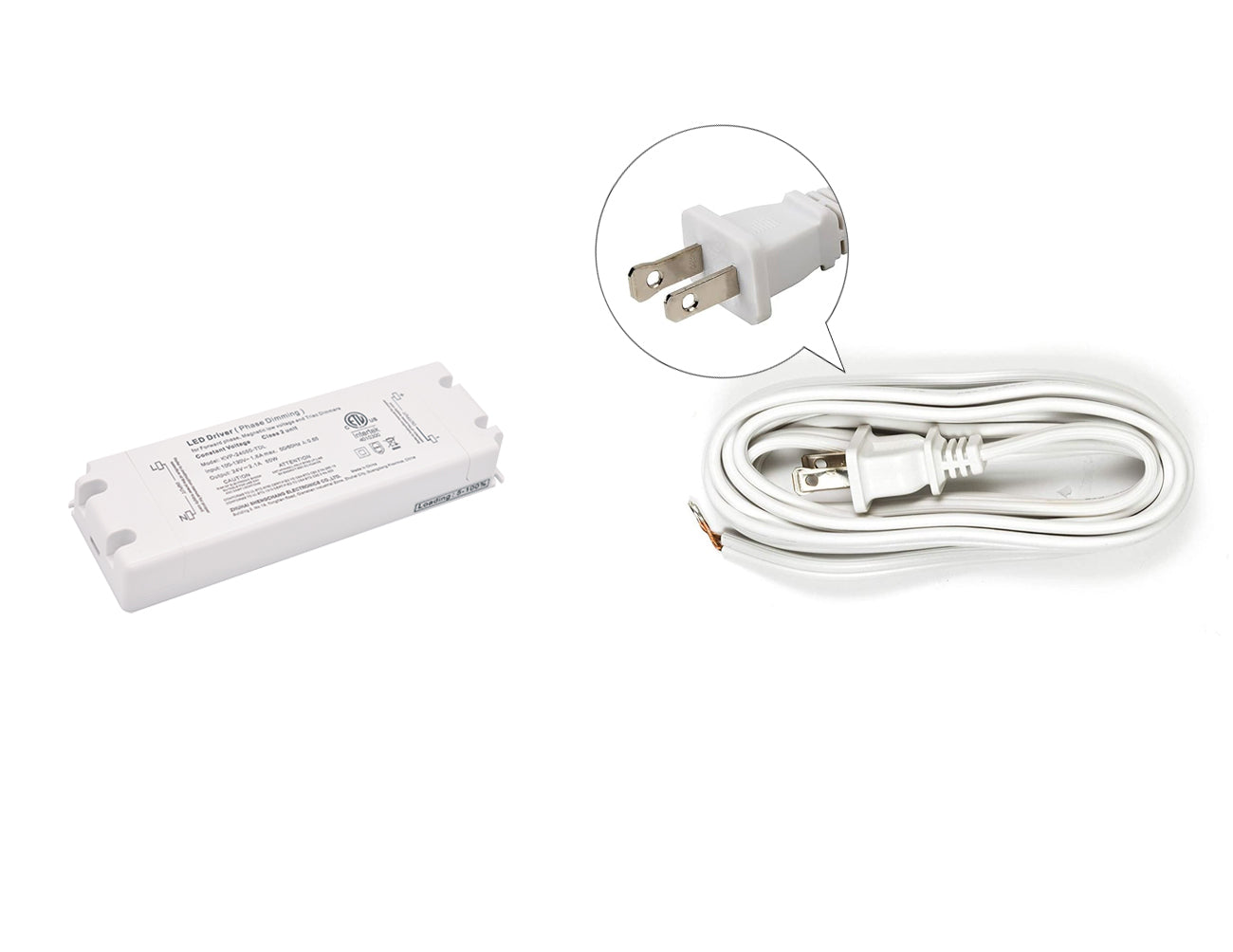

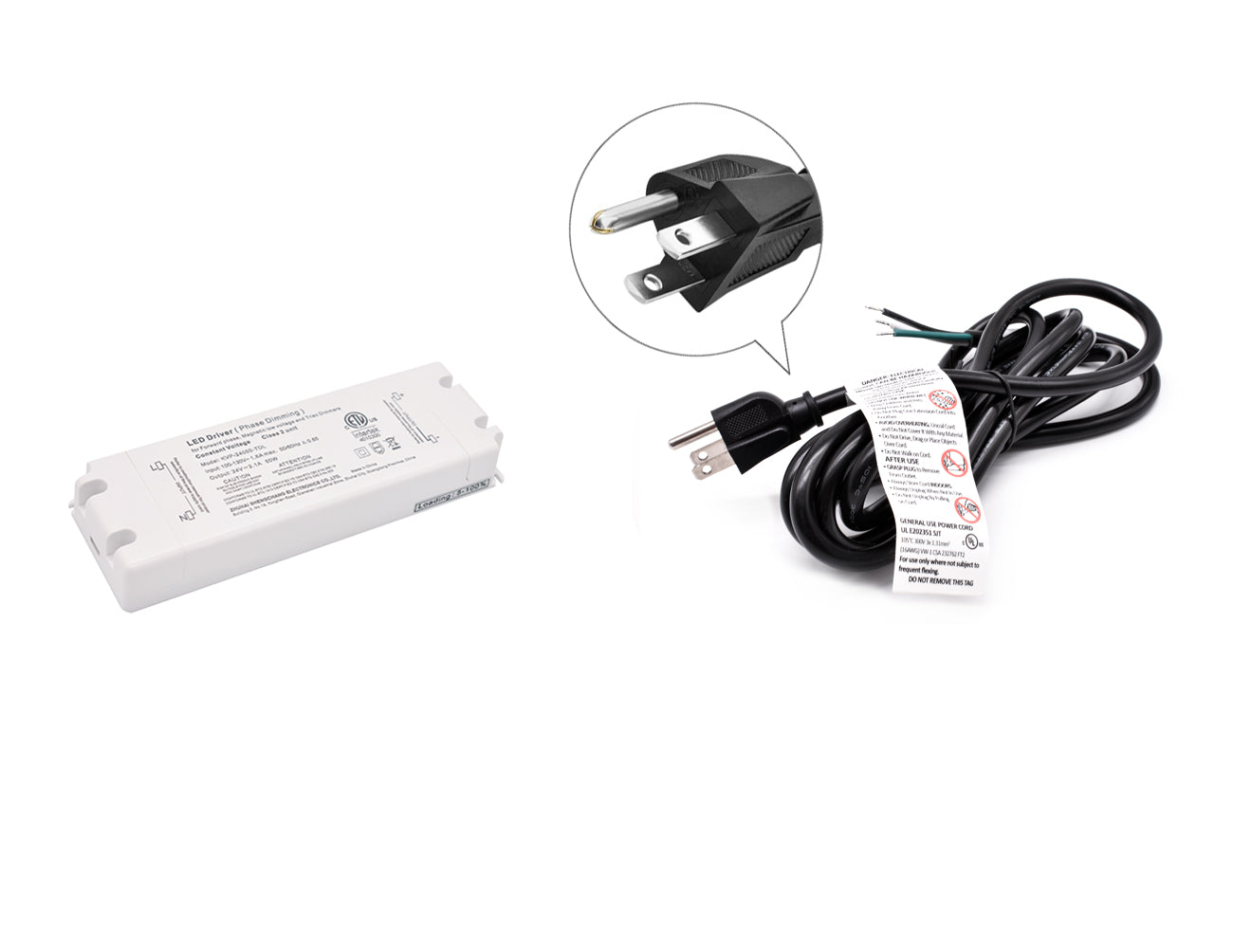

Power Cable

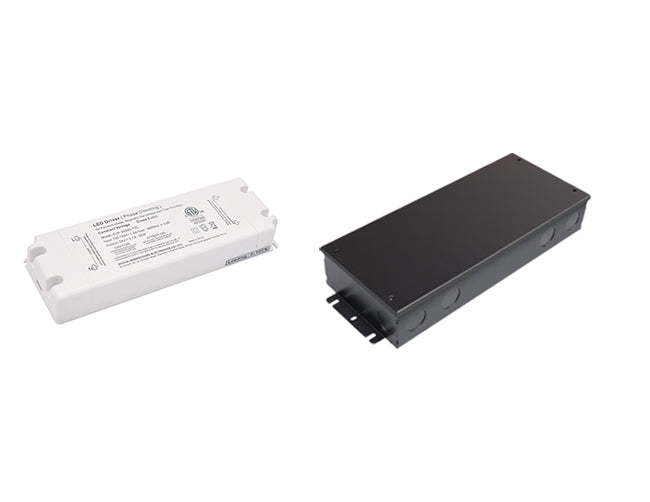

Junction Box

T Grid Mount Bracket
