Product Details

GL LED offers highly efficient, affordable, and exceptional performance LED ladder lights. These ladder-like lights, created by stacking rows of LED strips, are the ideal solution for a wide range of applications, including signage, fabric displays, letter channels, and general backlighting needs.

Our 17-inch wide LED ladder light features 12 rows, each containing 5 LEDs, consuming only 4.8W per row and 57.6W per ladder light while delivering an impressive light efficiency of 99Lm/W. With a high color rendering index (CRI=80) and a color temperature of 6500K, our LED ladder lights ensure vibrant and accurate colors.

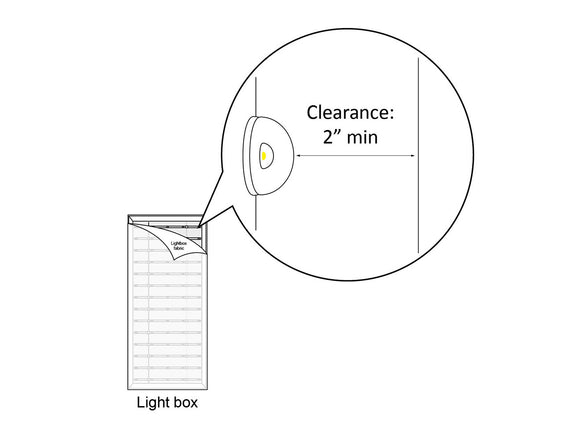

Installation is a breeze with these lightweight LED ladder lights, and we recommend placing them at least 2 inches away from the illuminated surface to prevent hotspots. Additionally, our LED ladder lights are equipped with special secondary light dissipation lenses to ensure uniform brightness throughout their usage.

Choose GL LED for energy-efficient, cost-effective, and high-performing LED ladder lights for all your backlighting needs.

Applications

Our Ladder Light is specially designed as a reliable light source for SEG fabric light boxes. With high brightness, uniform illumination, and energy-efficient performance, it is widely used in:

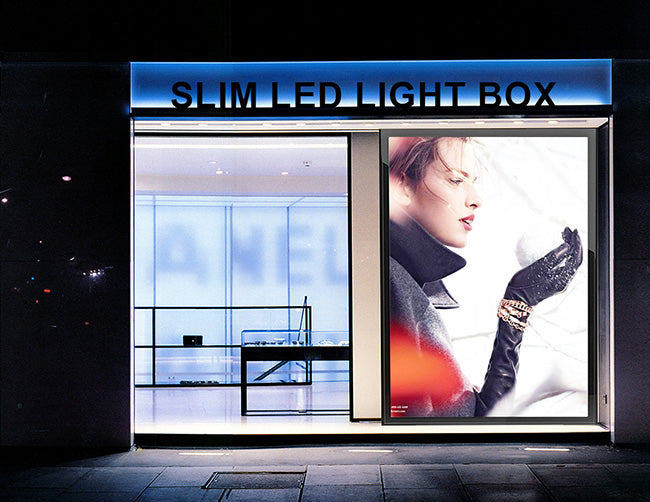

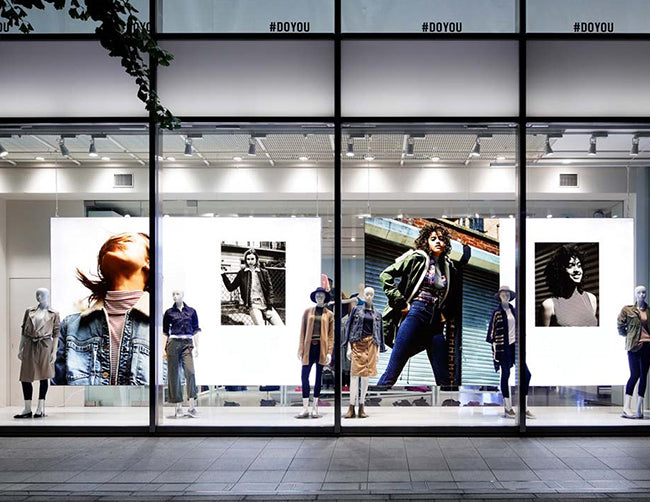

• Retail displays and store signage – create stunning backlit SEG light boxes to showcase brand visuals and promotions.
• Exhibition and trade show booths – provide brilliant, frameless LED SEG fabric light boxes that attract attention.
• Advertising and branding – deliver vivid, eye-catching graphics through backlit SEG displays in airports, shopping malls, and public spaces.
• Interior decoration and corporate environments – enhance modern spaces with slim SEG LED light boxes for wall-mounted or freestanding installations.

By combining our Ladder Light LED system with SEG fabric light boxes, customers achieve a frameless, lightweight, and cost-effective solution that ensures uniform brightness and a premium visual impact.

Customized Service is available, click here to get more information.

Want to try our product sample >>Click here!

Specifications

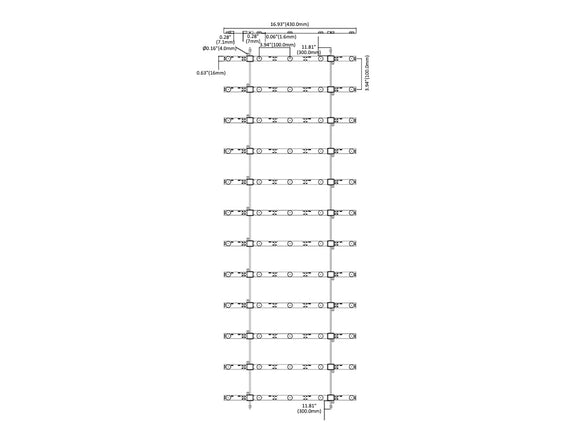

Dimension	17"(W) x 45"(H) x 3/8"(D)	Color Temperature × What is color temperature? Color temperature, measured in Kelvin (K), defines how warm or cool a light appears. Lower K values (like 2700K) create warm, yellowish tones; higher K values (like 4000K) produce cooler, bluish-white light. GL LED strip lights offer precise color consistency with 1-step MacAdam binning across all product lines. We follow ANSI C78.377-2017 and IES TM-30-18 standards to ensure excellent color accuracy and lighting quality. Whether you need cozy lighting for homes or bright, neutral tones for offices and retail, GL LED provides a full range of color temperatures to suit every space and design need. Read More >>>	6500K
Input Voltage × What is the input voltage of a low voltage LED strip light? GL LED low voltage strip lights are available in 12V or 24V DC. They require a compatible LED driver to convert standard 120V AC into safe low-voltage DC power. Using the wrong driver can lead to flickering, overheating, or permanent damage. Always match the power supply voltage to the LED strip’s rating. Proper voltage ensures consistent brightness, color accuracy, and a long lifespan. GL LED provides expert guidance and high-quality drivers for safe, efficient, and professional installations. Trust GL LED for reliable low voltage LED strip lighting solutions.	12VDC	LED Per Unit	5 LEDs/row, 12 rows
Power	4.8 W/row, 57.6W per unit	Brightness	99.51 lm/W, 5550 LM
View Angle	160°	Color Rendering Index (CRI) × What is CRI(Color Rendering Index)? CRI (Color Rendering Index) measures how accurately a light source reveals true colors (scale 0–100). A CRI of 80+ is good for general lighting, while 90+ delivers high color fidelity, ideal for retail, medical, and photography. All GL LED strip lights feature CRI 90+ for vivid color, and the Legend series reaches CRI 97+ for exceptional color accuracy. Perfect for high-end lighting applications.	>80
IP Rating	IP60 (Dry location)	Operating Ambient Temperature	-40°F(-40°C)~176°F(80°C)
Storage Temperature	-40°F(-40°C)~176°F(80°C)	Deepth Without Dark Spots	2 inches

Documents

LED Ladder Light Specification
LED Ladder Light - 5 points IES File
