Product Details

GL LED offers energy-efficient, affordable, and high-performance LED ladder lights. These ladder lights are constructed by stacking rows of LED strips, creating a versatile backlighting solution suitable for a wide range of applications, such as signage, fabric displays, letter channels, and general backlighting needs.

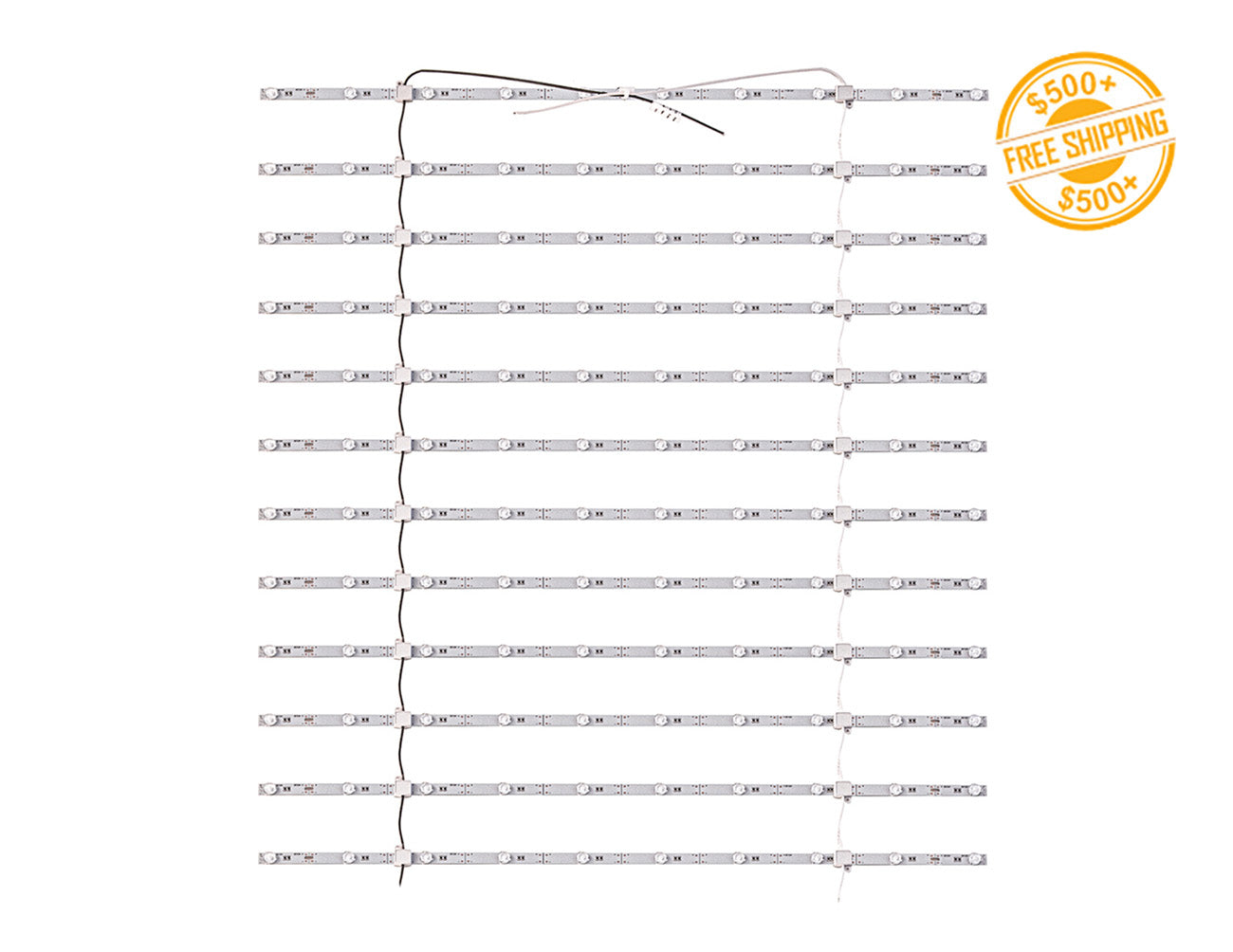

Our 36.5” wide LED ladder light consists of 12 rows, each featuring 10 LEDs, resulting in a power consumption of only 9.6W per row and 115.2W for the entire ladder light. With an impressive light efficiency rating of 99 lumens per watt (99Lm/W), these LED ladder lights deliver exceptional brightness.

Notably, our LED ladder lights boast a high color rendering index (CRI) of 80 and a color temperature of 6500K, ensuring vibrant and true-to-life illumination.

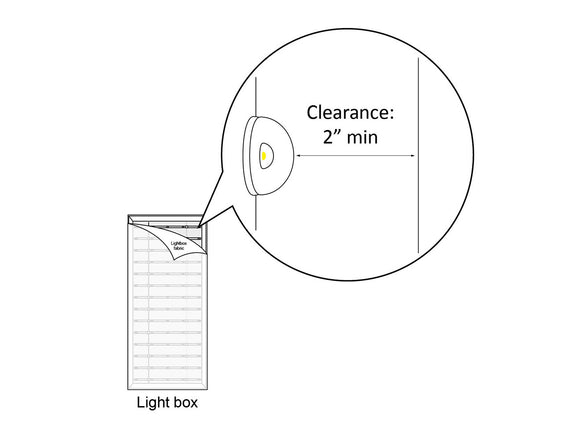

Installation is a breeze thanks to the lightweight design of our LED ladder lights. We recommend positioning the ladder light at least 2 inches away from the illuminated surface to prevent the appearance of hotspots. Additionally, our ladder lights feature a special secondary light dissipation lens that guarantees uniform brightness across your chosen application.

Choose GL LED for top-quality LED ladder lights that combine energy efficiency, affordability, and outstanding performance. Experience the brilliance of our LED lighting solutions for all your backlighting needs.

Applications

Our Ladder Light is purpose-built to serve as a reliable light source for SEG fabric light boxes. With high brightness, uniform illumination, and energy-efficient performance, it is widely applied in the following areas:

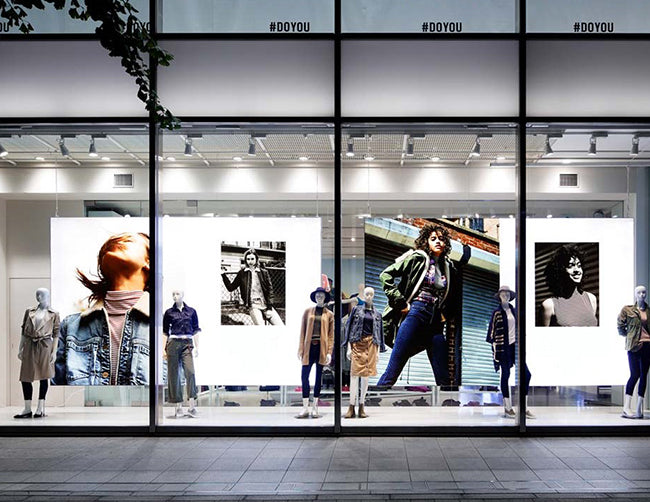

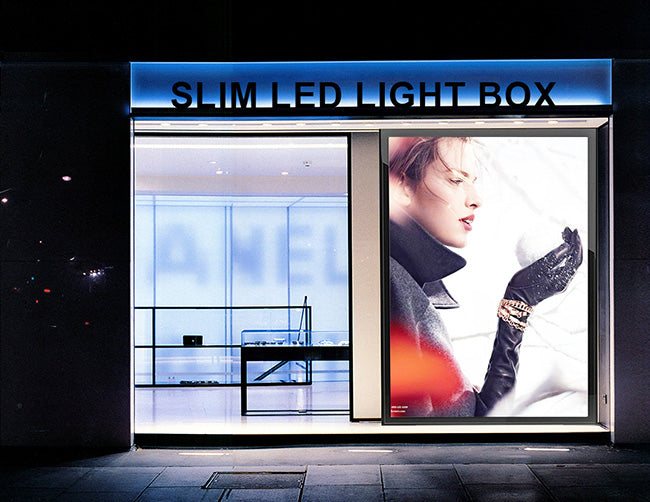

• Retail displays and store signage – create stunning backlit SEG light boxes to showcase brand visuals and promotions.
• Exhibition and trade show booths – provide brilliant, frameless LED SEG fabric light boxes that attract attention.
• Advertising and branding – showcase bold, attention-grabbing graphics in airports, shopping centers, and other public venues through illuminated SEG displays.

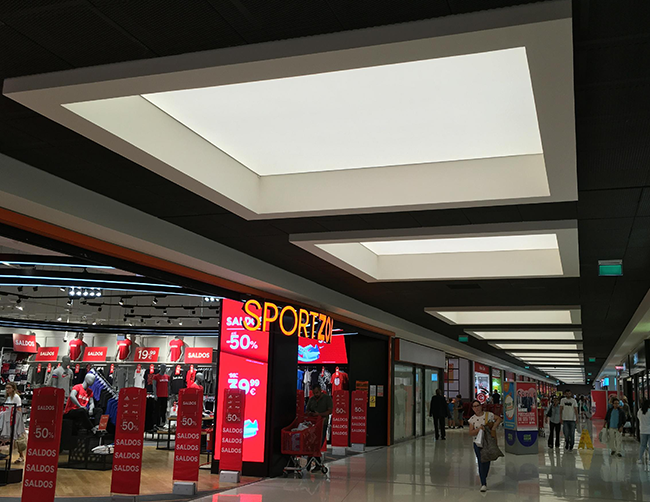

• Interior decoration and corporate settings – enhance modern spaces with slim SEG LED light boxes for wall-mounted or freestanding installations.

By integrating our Ladder Light system with SEG fabric displays, users benefit from a frameless, lightweight, and budget-friendly lighting solution that ensures even illumination and maximum visual appeal.

Customized Service is available, click here to get more information.

Want to try our product sample >>Click here!

Specifications

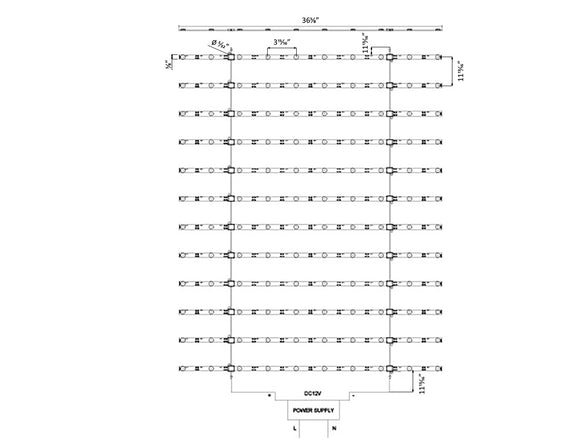

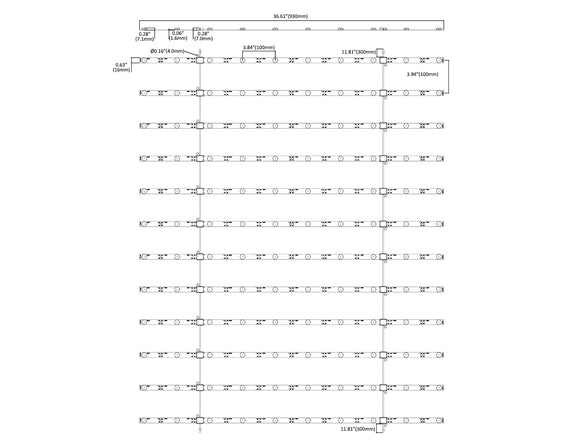

Dimension	36 1/2”(W) x 45”(H) x 3/8”(D)	Color Temperature × What is color temperature? Color temperature, measured in Kelvin (K), defines how warm or cool a light appears. Lower K values (like 2700K) create warm, yellowish tones; higher K values (like 4000K) produce cooler, bluish-white light. GL LED strip lights offer precise color consistency with 1-step MacAdam binning across all product lines. We follow ANSI C78.377-2017 and IES TM-30-18 standards to ensure excellent color accuracy and lighting quality. Whether you need cozy lighting for homes or bright, neutral tones for offices and retail, GL LED provides a full range of color temperatures to suit every space and design need. Read More >>>	6500K
Input Voltage × What is the input voltage of a low voltage LED strip light? GL LED low voltage strip lights are available in 12V or 24V DC. They require a compatible LED driver to convert standard 120V AC into safe low-voltage DC power. Using the wrong driver can lead to flickering, overheating, or permanent damage. Always match the power supply voltage to the LED strip’s rating. Proper voltage ensures consistent brightness, color accuracy, and a long lifespan. GL LED provides expert guidance and high-quality drivers for safe, efficient, and professional installations. Trust GL LED for reliable low voltage LED strip lighting solutions.	12VDC	LED Per Unit	10 LEDs/row, 12 rows
Power	9.6w/Row, 115.2W per unit	Brightness	99.14 lm/w, 10338 LM
View Angle	160°	Color Rendering Index (CRI) × What is CRI(Color Rendering Index)? CRI (Color Rendering Index) measures how accurately a light source reveals true colors (scale 0–100). A CRI of 80+ is good for general lighting, while 90+ delivers high color fidelity, ideal for retail, medical, and photography. All GL LED strip lights feature CRI 90+ for vivid color, and the Legend series reaches CRI 97+ for exceptional color accuracy. Perfect for high-end lighting applications.	>80
IP Rating	IP60 (Dry location)	Operating Ambient Temperature	-40°F(-40°C)~176°F(80°C)
Storage Temperature	-40°F(-40°C)~176°F(80°C)	Deepth Without Dark Spots	2 inches

Documents

LED Ladder Light Specification
LED Ladder Lightt - 10 points IES File
