BOARD EDGE - JH 1713 Silver Aluminum Channel + Milky Diffuser - 24"/94"

SKU: JH-1713-AL-2-M-S

$9.42

Product Details

JH 1713 Silver Aluminum Channel + Milky Diffuser is an extrusion made of anodized extruded aluminum with a milky diffuser and has a dimension of 0.71” in width and 0.42” in height. Internal width of the aluminum channel is 0.21", compatible to host a 5mm wide LED strip light. The extrusion has 24" and 94” length options , and silver and black color finish options.

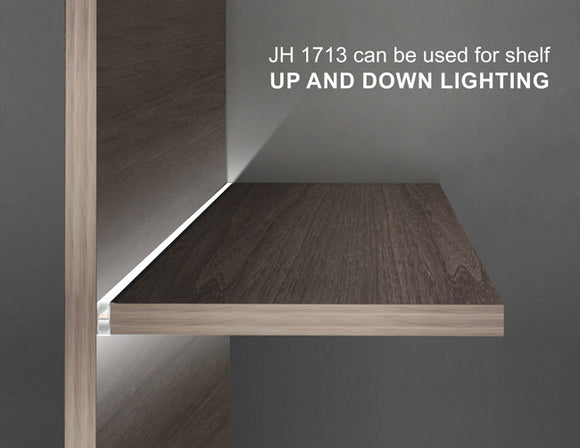

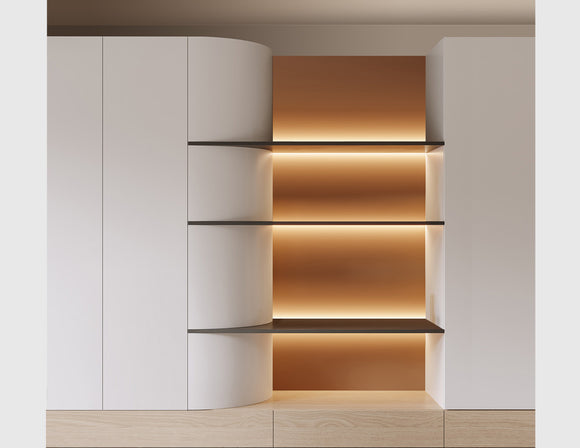

The JH-1713 aluminum extrusion can host two lines of narrow LED strip lights for both up and down light distributions, and is ideal for cabinet or shelf edge lighting.

Want to try our product sample >>Click here!

Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.



Specifications

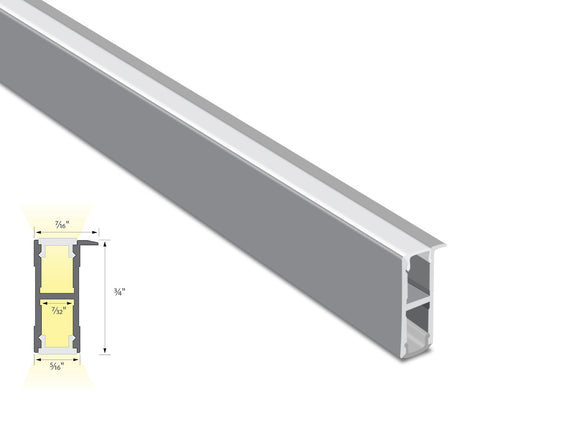

Dimension

L 24"/94", W 19/32", H 1 5/32"

Internal width

7/32"

Material

Anodized Aluminum

Finish

Silver aluminum and milky diffuser

Diffuser

Milky

Installation

Recessed Mount

Application

Indoor

Length

94 in



Documents

Aluminum Channel Specification - BOARD EDGE JH 1713

View Accessories

Why Aluminum LED Profiles Are Essential?

Aluminum LED profiles are more than aesthetic accessories—they’re an engineering solution for high-performance lighting. Here's why they’re indispensable:

·Thermal Management Mastery
Aluminum channels absorb and dissipate heat efficiently, ensuring LEDs stay cool and last longer.

·Diffused Light Output
Using diffusers, they prevent hotspots and distribute light uniformly, ideal for under-cabinet, task, or accent lighting.

·Tough Protective Housing
Designed to withstand external elements, they provide mechanical and environmental protection in any setting.

·Precision Fit & Finish
Cut-to-length capability and a wide range of mounting options make them a lighting designer’s best tool.

·Cost Savings Over Time
Fewer LED failures mean fewer replacements, saving time and money in the long run.

Frequently bought together

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

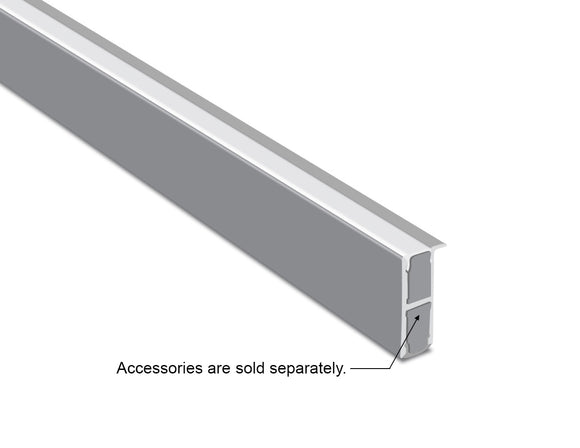

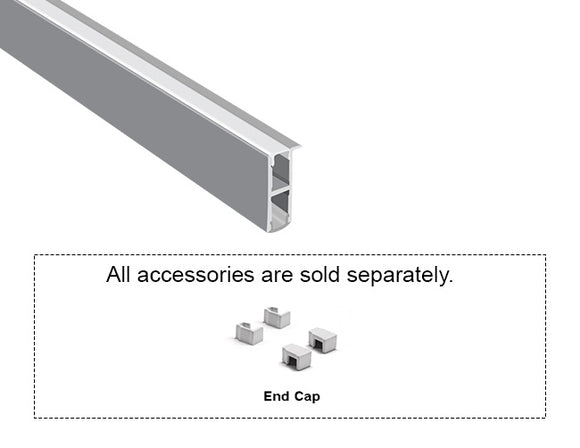

Accessories are available and sold separately

End Caps
