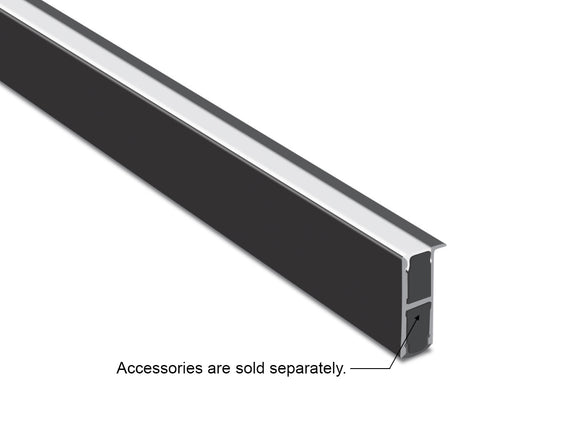

BOARD EDGE - JH 1713 Black Aluminum Channel + Milky Diffuser - 24"/94"

Product Details

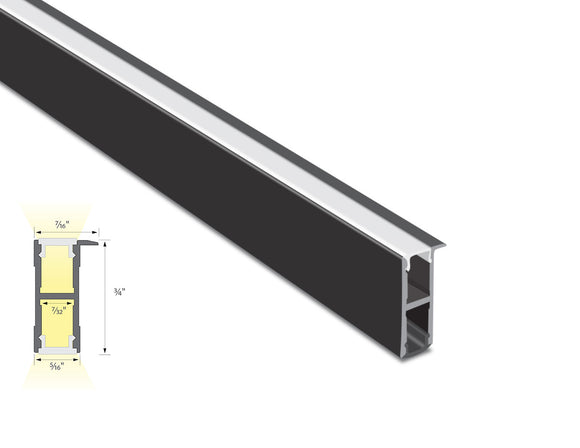

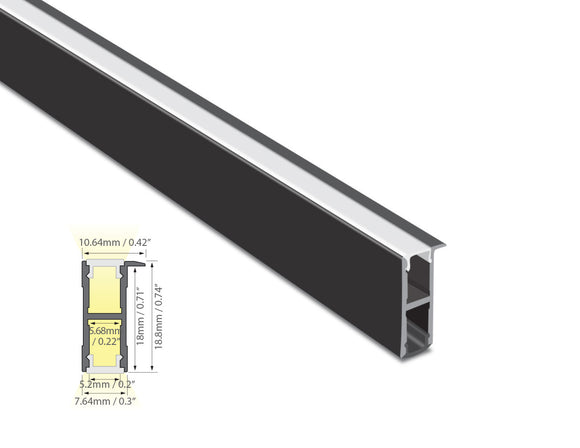

JH 1713 Black Aluminum Channel + Milky Diffuser is an extrusion made of anodized extruded aluminum with a milky diffuser and has a dimension of 0.71” in width and 0.42” in height. Internal width of the aluminum channel is 0.21", compatible to host a 5mm wide LED strip light. The extrusion has 24" and 94” length options , and silver and black color finish options.

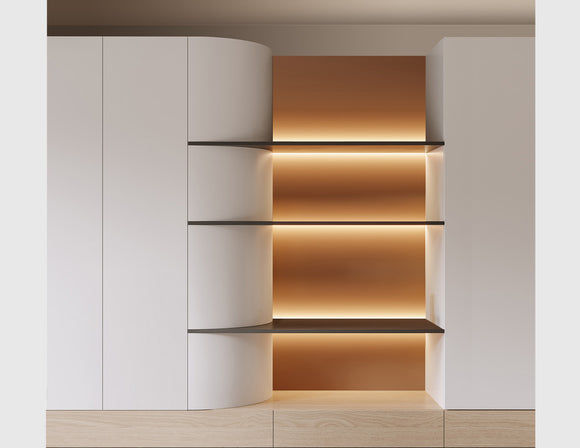

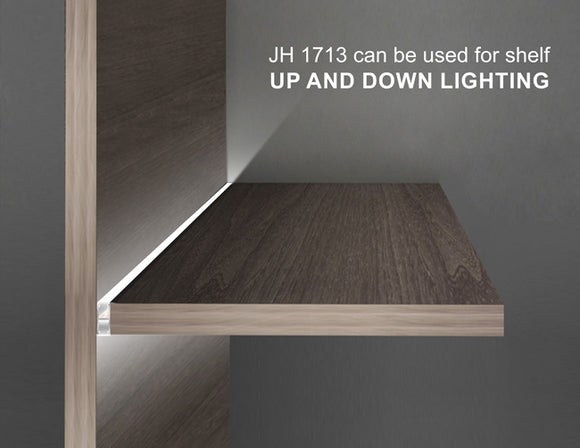

The JH-1713 aluminum extrusion can host two lines of narrow LED strip lights for both up and down light distributions, and is ideal for cabinet or shelf edge lighting.

Want to try our product sample >>Click here!

Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.

Documents

Aluminum Channel Specification - BOARD EDGE JH 1713

6 Advantages of Aluminum LED Channels

Aluminum LED channels provide exceptional benefits for both residential and commercial lighting designs. Here are the six core reasons to incorporate them in your next project:

•Enhanced Lighting Aesthetics
These sleek housings neatly hide LED strips and wires, creating a clean, polished look that complements modern architecture.

•Superior Light Diffusion

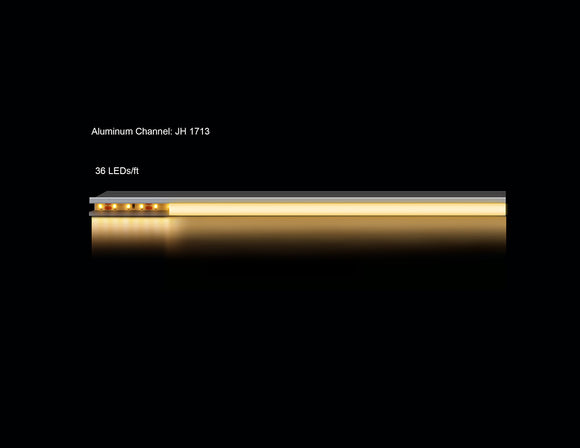

Integrated frosted or opal diffusers soften light output, reducing harsh glare and offering a smooth, ambient glow.

•Effective Heat Dissipation
Aluminum’s thermal conductivity draws heat away from LEDs, prolonging their lifespan and maintaining consistent brightness.

•Durability in Harsh Environments
Aluminum profiles shield LEDs from dust, moisture, and physical contact—perfect for indoor and outdoor use.

•Flexible Installation Options
Cut, shape, and configure these channels to fit any surface—ceilings, walls, cabinetry, or furniture.

•Cost-Efficient Lighting
By reducing LED wear and tear, these channels lower replacement frequency and ongoing maintenance costs.
