ROUND CORNER-L - YD 2004 Aluminum Channel + Milky Diffuser - 94"

SKU: YD-2004-AL-8-M

Login to view price

YD-2004 is a rounded corner LED aluminum extrusion made of anodized extruded aluminum with a milky diffuser, and is designed to accommodate LED strip and tape lights to complete a stylish LED strip light fixture. Each piece is 94” long and has a silver color finish. The milky diffuser helps to create an evenly distributed, glare-free light throughout the aluminum channel.

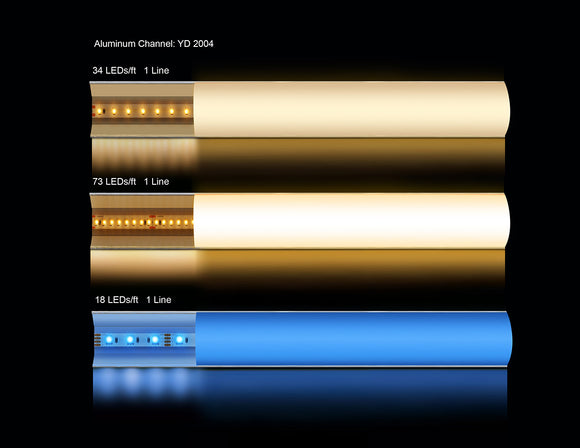

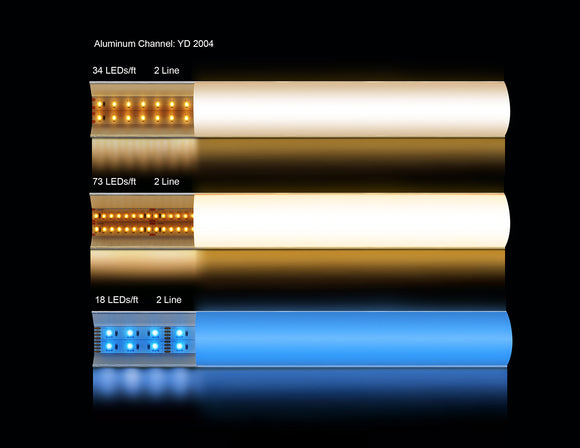

YD-2004 shares similarities with ES-1616 and YD-1002 in terms of their shapes, but it surpasses them in size, allowing for the accommodation of two rows of regular strip lights. This larger dimension facilitates the production of even illumination without any hotspots.

The aluminum extrusion protects LED strip lights from damages and dusts by providing a rigid and enclosed housing space. It also works as a heat sink to dissipate heat from LED lights. YD-2004 LED aluminum extrusion can be easily mounted to flat surfaces by corners, making them ideal for cove lights, accent light, and under cabinet lights.

It is recommended to use screws or 5/8" wide 3M double sided tape to secure the channel for surface mounting.

Want to try our product sample >>Click here!

Note: LED strip light is NOT included

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel
  • Model No: YD-2004-AL-8-M

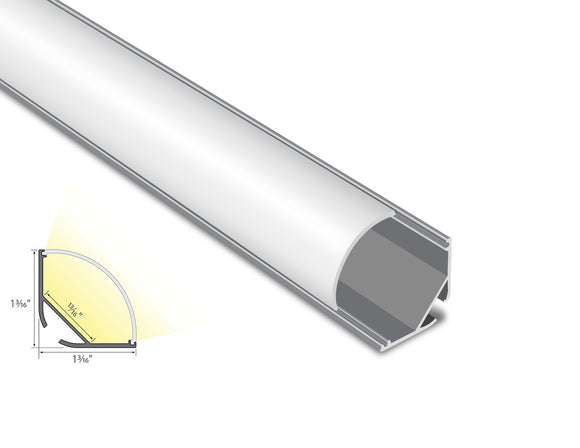

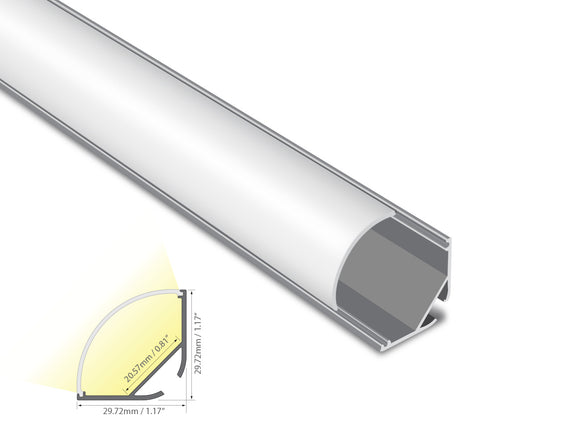

  • Dimension: L 94", W 1 3/16", H 1 3/16"
  • Internal width: 13/16"
  • Work Environment / IP Rating: IP20
  • Finish options: Silver, Anodized extruded aluminum, Frosted plastic Cover
  • Installation options: Surface Mounted
  • Special features: Round Corner-L

Aluminum Channel Specification - ROUND CORNER-L YD 2004

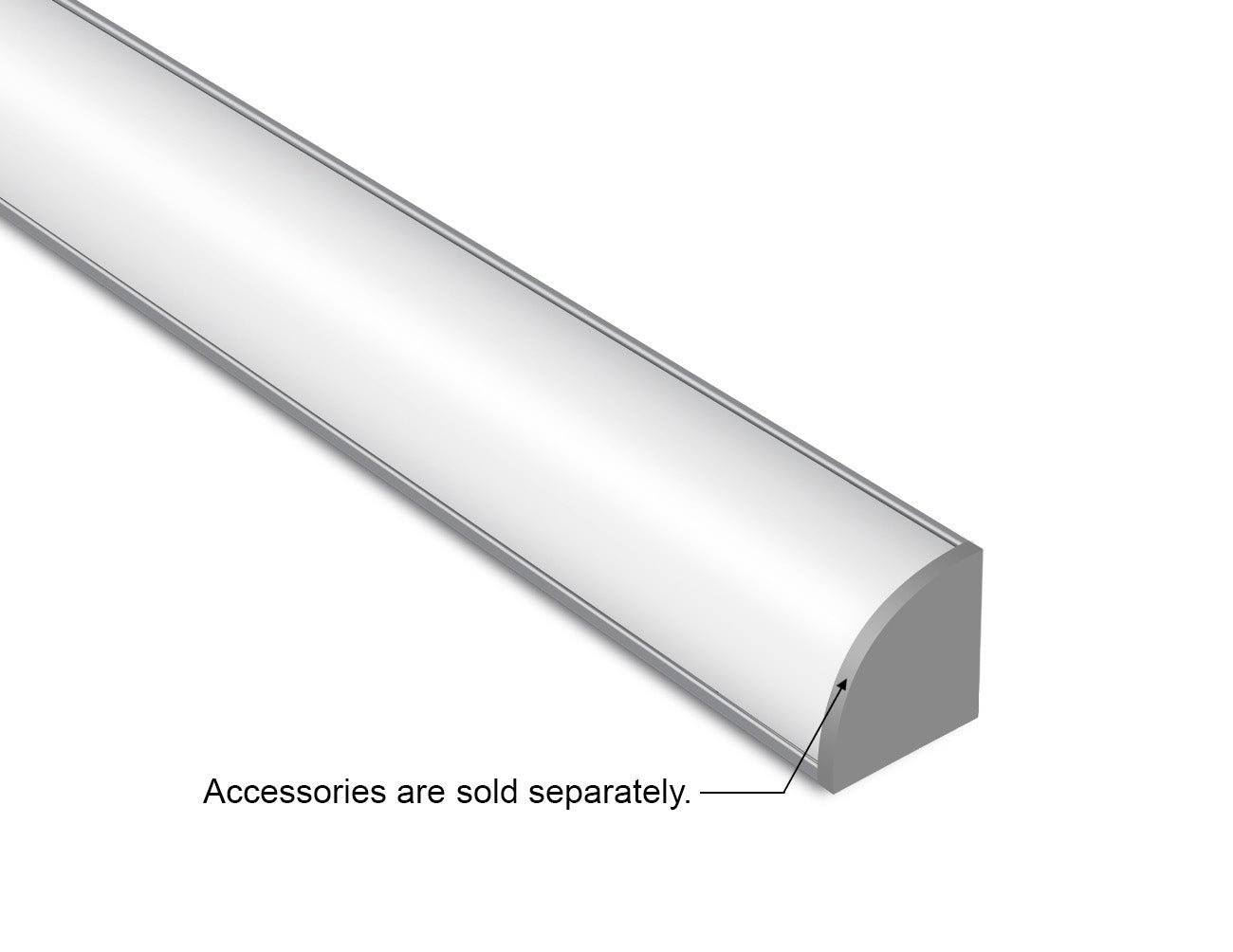

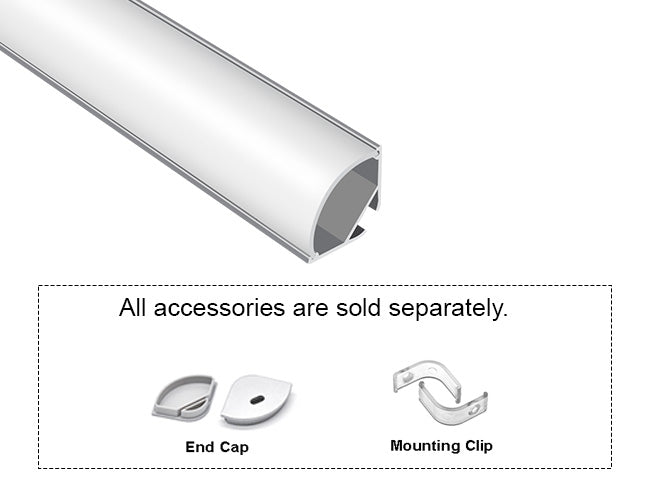

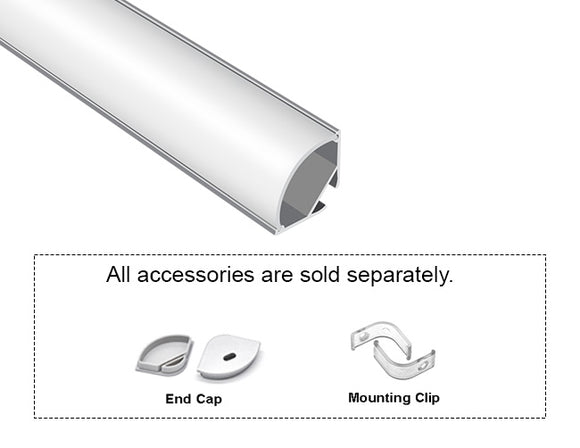

Accessories are available and sold separately

End Caps
