Product Details

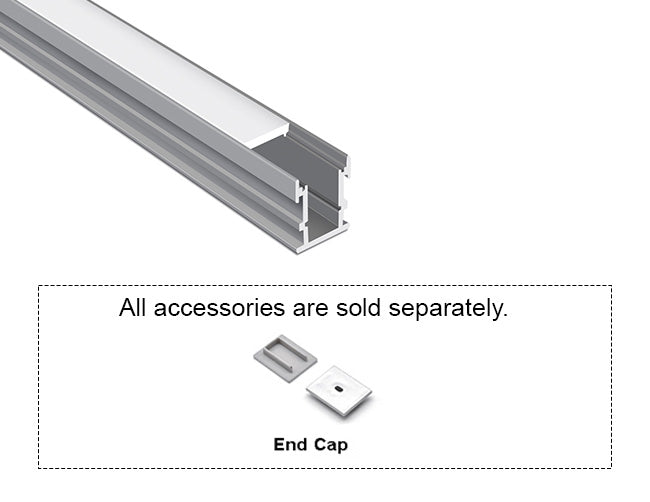

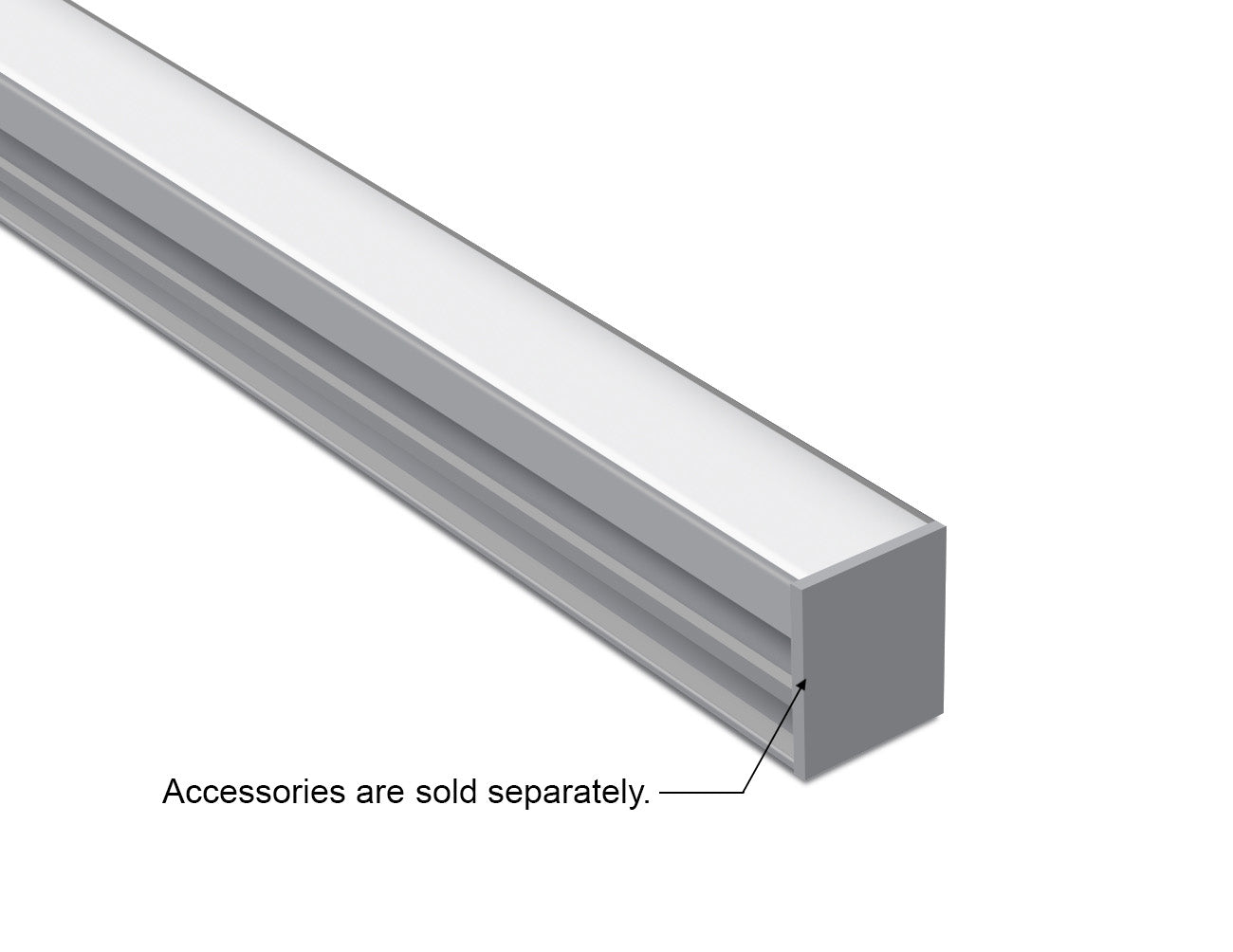

GL-034 is a floor recessed extrusion made of anodized extruded aluminum with a milky diffuser and has a dimension of 0.85” in width and 1.03” in height. Internal width of the aluminum channel is 0.48", compatible to host a 10mm LED strip light. Each piece is 94” long and has a silver color finish. The thickness of the diffuser is 0.1", durable to withstand normal foot traffic.

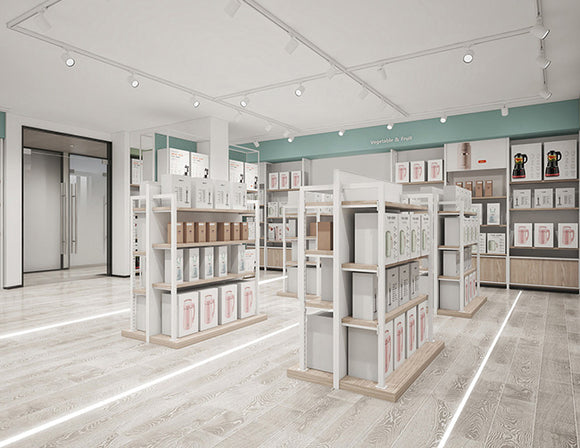

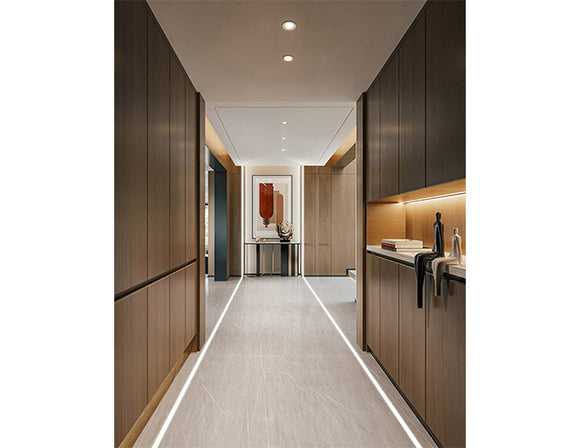

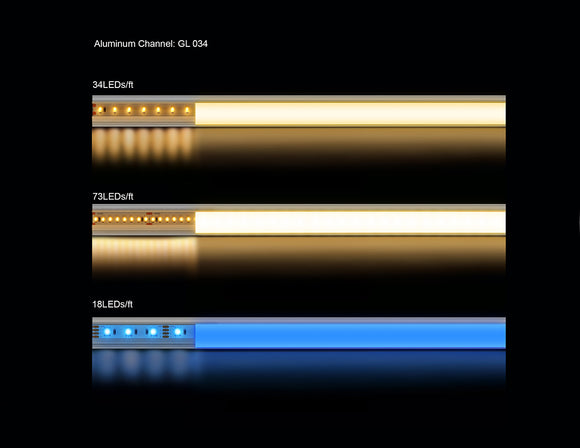

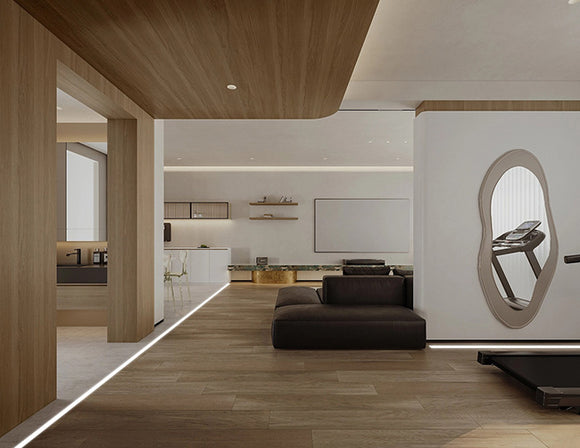

The aluminum extrusion can hold pressure and be recessed in various types of floors. They are perfect for floor lighting in any environments, producing a stylish and innovative lighting appearance. The milky diffuser helps to distribute even and dot-free light throughout the aluminum channel.
The aluminum extrusion possesses excellent structural integrity, allowing it to withstand pressure and be seamlessly recessed into different types of flooring. It proves to be an ideal choice for floor lighting in diverse environments, offering an appealing lighting aesthetic. With the assistance of the milky diffuser, the extrusion ensures the uniform dispersion of light without any visible dots, creating a flawless illumination effect throughout the entire aluminum channel.
Want to try our product sample >>Click here!
Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.
Specifications

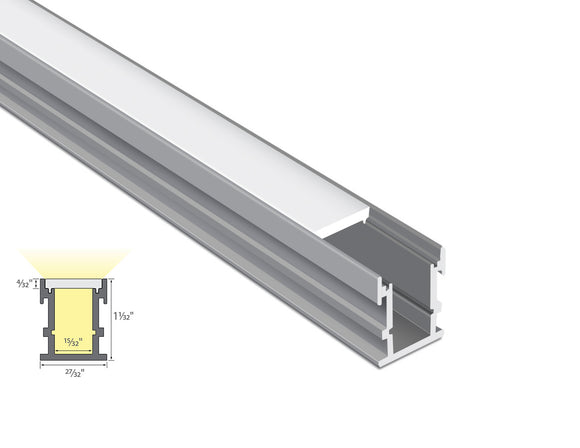

Dimension |
L 94", W 27/32", H 1 1/32" |
Internal width |
15/32" |
Material |
Anodized Aluminum |
Finish |
Silver aluminum and milky diffuser |
Diffuser |
Milky |
Installation |
Recessed Mount |
Application |
Indoor |
Length |
94 in |
Documents
Aluminum Channel Specification - FLOOR RECESS GL 034
View AccessoriesWhy Aluminum LED Channels Are a Game-Changer
Aluminum profiles aren’t just for looks—they’re critical components that elevate the performance and lifespan of any LED lighting setup. Here’s why they matter:
· Superior Heat Control
Aluminum dissipates heat away from LEDs, helping to prevent overheating and extend operating life.
· Smooth, Even Lighting
With the use of diffuser covers, these channels eliminate harsh light spots, delivering a soft and uniform glow.
· Strong, Durable Frame
Built for resilience, they shield LED strips from physical damage, dust, and moisture—indoors or out.
· Custom Fit, Clean Install
Available in different lengths and mounting styles, they offer flexibility and a sleek, professional appearance.
· Efficiency That Pays Off
By protecting LEDs and reducing failures, aluminum profiles cut down on maintenance and replacement costs.
