LED T Grid Linear Light - 2ft - 15/16"

SKU: GTB2-DM-35U

Login to view price

T Grid linear light design offers a unique combination of LED modules and T-Grid brackets. Featuring new generation of green lighting solutions, the luminaires deliver up to 130lm/W, enlarging the lumen spread over the entire space. The exclusive low glare lens provides end users with a high visual comfort, glare-free and uniform distribution of light. This linear fixture allows more design freedom, provided that the LED module can follow the ceiling elements in various of ways (both across and in length).

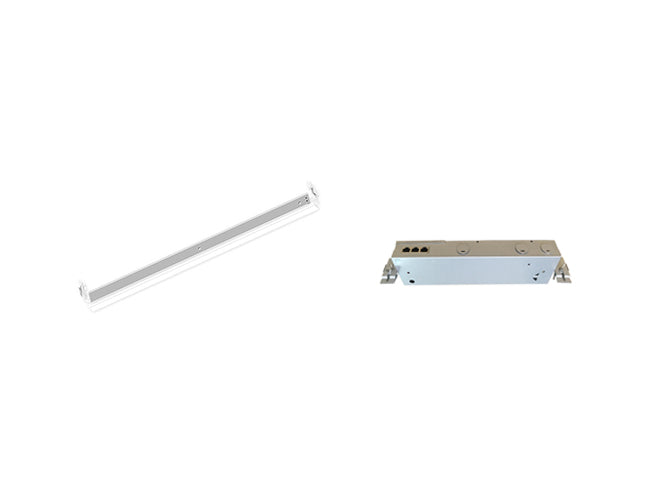

Compatible Transformer:

30W Transformer
For up to 3pcs LED T Grid Linear Light 2ft

Emergency Option:

Emergency Driver



Q&A:

What is the difference between LED linear lights and LED strip lights?

LED linear lights and LED strip lights are both types of linear LED lighting solutions that offer various benefits in terms of energy efficiency, durability, and versatility. However, there are some differences between the two that are worth noting.

LED linear lights are typically larger and more robust than LED strip lights. They often have a more substantial housing, which allows for better heat dissipation and protection against physical damage. LED linear lights also tend to be brighter and have a higher output than LED strip lights, making them suitable for use in commercial and industrial settings.

On the other hand, LED strip lights are generally more flexible and adaptable than LED linear lights. They come in a roll or a reel, allowing for easier installation and customization. LED strip lights can be cut to length, making them ideal for use in tight spaces or irregularly shaped areas. They are also available in a wider range of colors, color temperatures, and brightness levels, making them ideal for a variety of applications, including residential and commercial lighting.



Instruction Video:

  • Model No.: GTB2-DM-XXU
  • Input Voltage: AC 100-277V
  • Power: 10W
  • Brightness/Lumens: 1300lm
  • High Efficacy: 130lm/W
  • Dimension: L 47.96", W 0.93", H 0.51"
  • Length: 2'
  • Body Color: Grey
  • Dimmable: 0-10V
  • Color Rendering Index (CRI): >80
  • Color Temperature (CCT): Warm White (3500K), Natural White (4000K)
  • Beam Angle: 120°
  • IP Rate: IP40 (Non-Waterproof)
  • Limited 5 years warranty

LED T Grid Linear Light Specification
LED T Grid Linear Light 2FT IES File
