LED Wall Washer W38A Series - RGBW - 110VAC

Product Details

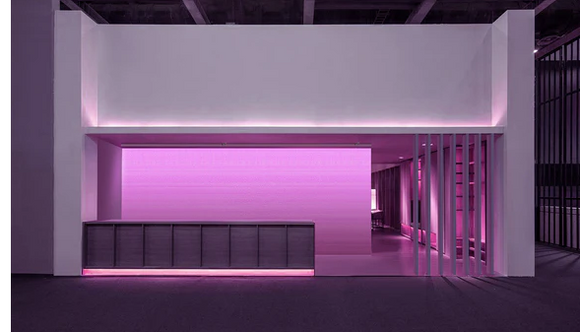

This LED wall washer light series is mainly used for decorating and highlighting in building frame, garden, etc. The main material of this product is high quality aluminum profile and toughened glass. It adopts high quality anodized shell technology, which is more corrosion resistant. The impact resistance grade is IK07, and the waterproof grade is IP66. This series of products includes both high and low voltage, each lamp body specification is available in a variety of lengths, a variety of colors and beam angles, a variety of control methods and a variety of common accessories. High light efficiency and different mounting clips are optional, so that the light forms into the building with different environment.

Note:
All IP66-rated products for wet locations only, cannot be used in water or in places where water might accumulate.

Specifications

Input Voltage × What is the input voltage of a low voltage LED strip light? GL LED low voltage strip lights are available in 12V or 24V DC. They require a compatible LED driver to convert standard 120V AC into safe low-voltage DC power. Using the wrong driver can lead to flickering, overheating, or permanent damage. Always match the power supply voltage to the LED strip’s rating. Proper voltage ensures consistent brightness, color accuracy, and a long lifespan. GL LED provides expert guidance and high-quality drivers for safe, efficient, and professional installations. Trust GL LED for reliable low voltage LED strip lighting solutions.	120-277VAC	Length	1ft, 4ft
Power	9W, 36W	Color	RGBW
Brightness	405 lm, 1620 lm	Light Efficacy × What Is Light Efficacy (lm/W)? Does High lm/W Affect CRI? Light efficacy (lm/W) shows how efficiently electricity is turned into visible light. Higher lm/W means more light per watt, saving energy and reducing heat. But as lm/W increases, CRI (Color Rendering Index) often drops. High-efficacy lights may appear bright but show colors poorly. Industrial lights favor lm/W, while retail and home lighting value high CRI for accurate, natural color.	45 lm/W
Power Connection (MAX)	66 PCS, 16 PCS	Beam Angle	15° /30° /45° /60° 10×45°, 15×55°, 20×40°
IP Rating	IP66 (Wet location)	Finish	Black



Documents

LED Wall Washer Light W38A Series - RGBW - 110VAC Specification
